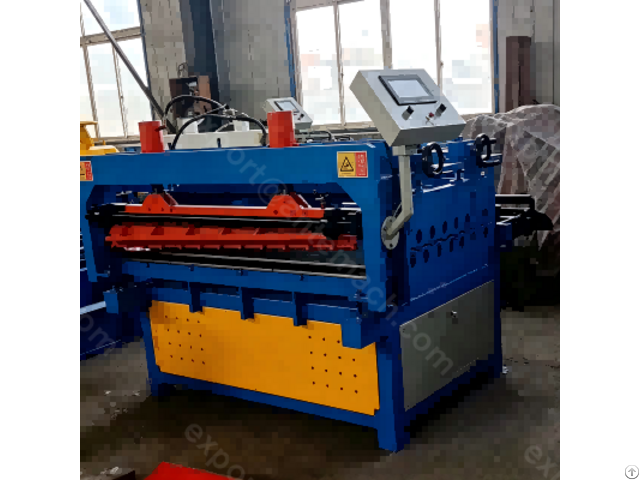

Servo-Driven Automatic Shearing Machine for Blanks

1 - Product Overview

The Automatic Shearing Machine is the precision cutting station in your steel drum production line.

Following the leveling process, it takes over to produce the final, accurately sized blank.

Its sole function is to make rapid, clean, and perfectly repeatable cuts.

The length precision of each blank directly determines the circumference and quality of the final drum body, making this machine indispensable for maintaining dimensional consistency and high throughput.

It is the essential step for preparing blanks for 200L/210L steel drums from cold rolled or galvanized steel.

The machine can be supplied individually for an existing cutting line or integrated with:

· Hydraulic coil decoiler

· Steel coil precision straightener

· Servo feed automatic shearing machine

· Automatic coil stacking and squaring system

2 - Working Principle

The shear operates on a servo-driven feed and precision mechanical cutting principle for unmatched accuracy.

Core Structure: The machine consists of a rigid C-frame made from thick steel plate, a fixed lower blade, a moving upper blade, a precision gear drive system, a servo-driven feeder, and a PLC control cabinet with touchscreen HMI.

Control Logic: The cutting length is programmed into the PLC.

The servo feeder advances the material to the exact set length, then signals the shear to execute the cut.

The entire cycle is automated and synchronized with the line speed.

Process Flow:

The leveled sheet is fed into the shear by the servo-driven feeder.

When the sheet has advanced to the exact pre-programmed length, the feed stops with servo precision.

A clutch engages, and the powerful upper blade, driven by the gear system, descends to make a clean, instantaneous cut against the hardened lower blade.

The cut blank is discharged onto a conveyor or stacking system, and the cycle repeats.

3 - Technical Specifications

Parameter Specification

Shear Blades​ Molybdenum-Vanadium (Mo-V) Steel, 4 usable edges

Cutting Drive​ Servo Motor (3.8KW) + Precision Gear Transmission

Control System​ PLC & Touchscreen HMI

Max.

Cutting Width​ ≤ 1300 mm

Max.

Material Thickness​ Up to 1.2mm (for mild steel)

Typical Cutting Speed​ Up to ~15 meters per minute (line dependent)

Side Frame​ 30mm thick steel plate

Feed System​ Servo-driven precision feeder

4 - Suitable Applications

Drum Types: For producing blanks for standard 200L, 210L, and other cylindrical steel drums.

Material Specification: Cold rolled steel, galvanized steel, aluminized steel strip.

Industries: A key component in steel drum manufacturing lines for the chemical, food, paint, and petroleum industries.

5 - Customization Options

Cutting Length Range: The servo system can be programmed for a wide range of blank lengths to suit different drum diameters.

Speed & Throughput: Configured for low (1-2/min), medium (5-6/min), or high-speed (7-8/min) production lines.

Control Integration: PLC brand (Siemens, Mitsubishi, Omron) can be specified to match your plant's control architecture.

Custom I/O interfaces for seamless line integration.

Blade Specification: Blades can be tailored for different materials or for specialized edge profiles if required.

6 - Key Advantages

Clean, Burr-Free Edges: Sharp, hardened blades and an immensely rigid frame produce clean cuts, minimizing the need for secondary deburring and providing ideal edges for welding.
