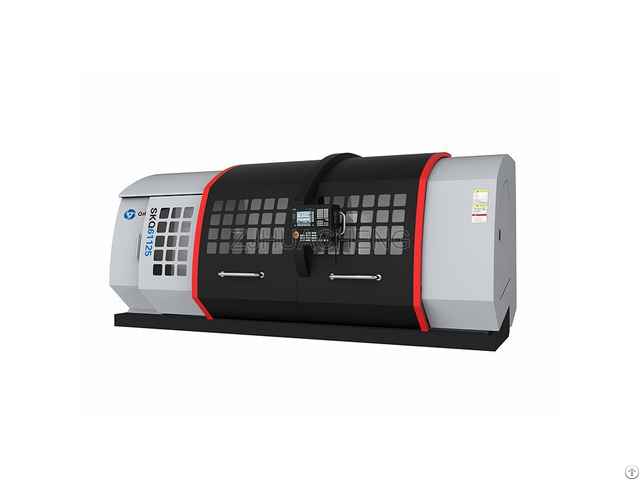

Skq Heavy Duty Cnc Lathe - China

With FANUC, SIEMENS or GSK numerical control system, has programmable controller (PC) and CRT display, linear and arc interpolation;

Heavy-duty CNC Lathe manufacturer: Huasheng

The longitudinal and transverse feed with AC servo motor, pulse encoder feedback, the bed guide rail has high-strength ultra audio frequency quenching and then precision grinding; The bed saddle pasted with plastic, and has little friction coefficient Variable frequency step-less speed regulation OR spindle servo motor step-less speed regulation Wide cutting range, can process outer circle, inner hole, end face, cutting groove, cone surface, chamfer, cone or cylindrical thread and arc surface

MODEL SKQ61100 SKQ61125 SKQ61140 SKQ61160

Max swing over bed 1000mm 1250mm 1400mm 1600mm

Max swing over cross slide 590mm 840mm 1000mm 1200mm

Center distance 2m 3m 4m 5m 6m 8m 10m 12m

Max.

turning length 1700, 2700, 3700, 4700, 5700, 7700, 9700, 11700mm

Spindle hole 130mm

Bed width 780mm

Diameter of tailstock sleeve 160mm

Max distance of moving tool-post

Longitude 1700, 2700, 3700, 4700, 5700, 7700, 9700, 11700mm

Transverse 600mm

Spindle speeds(Number) 4 stage frequency conversion 5-20 15-60 25-100 65-250

Main motor power 22KW

Speed of high-speed movement

Longitude 4000mm/min

Transverse 3000mm/min

Tool numbers on tool-post 4 (option: 6, 8)

Positioning accuracy

Longitude 0.05/2000mm

Transverse 0.03mm

Repeatability

Longitude 0.025 / 2000mm

Transverse 0.012mm

Repeatability accuracy of tool-post 0.005mm
