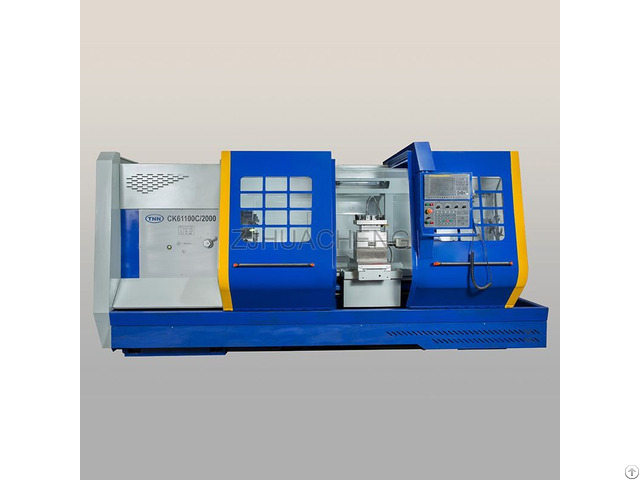

Siemens Numerical Control System Lathe - China

Model ck6163c ck6180c ck61100c ck61120c

max.

swing over bed 630mm 800mm 1000mm 1200mm

max.

swing over cross slide 315mm 450mm 650mm 850mm

max machining length 700, 1200, 1700, 2700, 3700mm

spindle hole 105mm 105mm(option: 130mm)

bed width 550mm

max.

distance of moving tool-post

longitude 700, 1200, 1700, 2700, 3700mm

transverse 350mm 450mm

spindle speeds(number) 14-60, 60-210, 210-750 rpm(manual three stage stepless speed change)

main motor power 15kw variable frequency motor

speed of high-speed movement

longitude 6000mm/min

transverse 3000mm/min

feed resoving factor

longitude 0.01mm

transverse 0.005mm

toll numbers on tool-post 4(option: 6, 8)

positioning accuracy

longitude 0.03/500mm 0.05/2000mm

transverse 0.02mm

repeatablity

longitude 0.013/500mm 0.025/2000mm

transverse 0.01mm

repeatablity accuracy of tool-post 0.005mm

net.

weight

center distance: 1500mm 3800kg 4300kg 4500kg

floor space(l*w*h)

center distance: 1500mm 3452*1600*1950

with fanuc, siemens or gsk numerical control system, has programmable controller (pc) and crt display, linear and arc interpolation;

Company Contact:

• Posted By: Zhenjiang Huasheng Intelligent Technology Co., Ltd

• Phone: 15862992365

• Address: NO.9 Jingsi Rd ,High technology industrial zone,Zhenjiang, Zhenjiang , JIangsu , China

• Email:

• Business Description: The predecessor of Zhenjiang Huasheng Intelligent Technology Co., Ltd. is Zhenjiang Machine Tool Factory which was established in the 1960s of last century; it has a history of more than 60 years; in recent years, the economic strength of the company has been increasing, and its comprehensive strength has been improving in the national machine tool industry, and it is in the leading position in the similar product machine tool industry in the province.

  The company has technical development department, manufacturing department, market development department, and other institutions, set up ten production workshops, forming a complete Organizational structure of development, manufacturing, marketing and control.

  The company is strategically located and easily accessible.

  The company's main products include ordinary lathes, CNC lathes, shaped screw CNC milling machine, CNC special machine tools, such as 8 series, 30 varieties, more than 300 specifications of the machine; the production of the machine has a high precision and good use; applicable to various industries of turning parts.

  Machine tools are the machine tools of the assembly industry, and good quality is the pursuit of customers and the strongest support for the company to take off.
