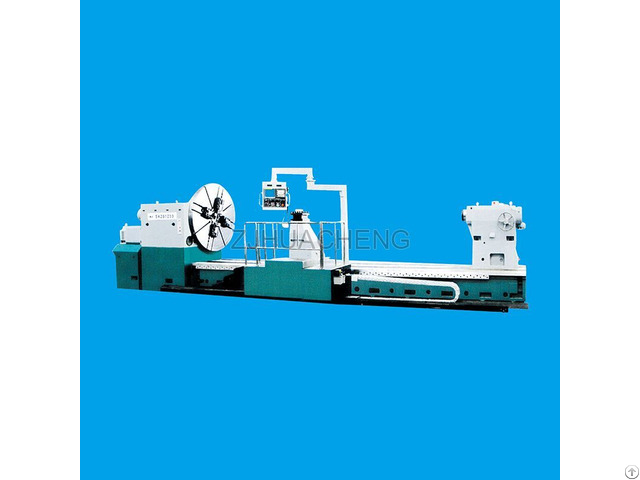

Gsk Numerical Control System Heavy Duty Cnc Lathe - China

With SIEMENS or GSK numerical control system, FANUC system or others, proceed to cut by High speed powerfully and stably, high machining accuracy, simple programming.

The longitudinal and transverse feed with AC servo motor, pulse encoder feedback, longitudinal and transverse motion guide rail adopts ultra-high frequency hardening treatment and fine grinding, The bed saddle pasted with Ptfe soft belt, and has little friction coefficient.

More information you can visit our website

Main motor adopts adjustable magnetic mixing speed regulating method, so that the spindle infinitely adjustable-speed.

Heavy-duty CNC Lathe: Zhenjiang Huasheng Intelligent Technology Co., Ltd

Wide cutting range, can process inner hole, cylindrical, end face, cone, chamfering, grooving, thread, and all kinds of circular arc surface, etc.

MODEL SKZ61160 SKZ61180 SKZ61200 SKZ61220 SKZ61240 SKZ61250

Max.

swing over bed 1600mm 1800mm 2000mm 2200mm 2400mm 2500mm

Max.

swing over cross slide 900mm 1100mm 1300mm 1500mm 1700mm 1800mm

Center distance 3m, 4m, 5m, 6m, 8m, 10m, 12m, 14m, 16m

Width of bed 1620mm

Spindle hole 85mm

Diameter of tailstock steeve 300mm

Max.

distance of moving tool-post Longitude 3m, 4m, 5m, 6m, 8m, 10m, 12m, 14m, 16m

Transverse 800mm

Spindle speeds(number) 0.8-18, 2.4-54, 7.2-160 r/min3 stage hydraulic stepless speed changes

Main motor power 80kw

Speed of high-speed movement Longitude 3000mm/min

Transverse 2000mm/min

Tool numbers on tool-post Single tool tool holder (option: 4, 6, 8 or frame stype tool rest)Manual tool change

Positioning accuracy Longitude 0.05mm

Transverse 0.03mm

Repeatability Longitude 0.025mm

Transverse 0.012mm

Repeatabity accuracy of tool-post 0.005mm

Net.

weight(KG) SKZ61250*8000mm 55000kg

Floor space(L*W*H) SKZ61250*8000mm 13600*2500*3200

Company Contact:

• Posted By: Zhenjiang Huasheng Intelligent Technology Co., Ltd

• Phone: 15862992365

• Address: NO.9 Jingsi Rd ,High technology industrial zone,Zhenjiang, Zhenjiang , JIangsu , China

• Email:

• Business Description: The predecessor of Zhenjiang Huasheng Intelligent Technology Co., Ltd. is Zhenjiang Machine Tool Factory which was established in the 1960s of last century; it has a history of more than 60 years; in recent years, the economic strength of the company has been increasing, and its comprehensive strength has been improving in the national machine tool industry, and it is in the leading position in the similar product machine tool industry in the province.

  The company has technical development department, manufacturing department, market development department, and other institutions, set up ten production workshops, forming a complete Organizational structure of development, manufacturing, marketing and control.

  The company is strategically located and easily accessible.

  The company's main products include ordinary lathes, CNC lathes, shaped screw CNC milling machine, CNC special machine tools, such as 8 series, 30 varieties, more than 300 specifications of the machine; the production of the machine has a high precision and good use; applicable to various industries of turning parts.

  Machine tools are the machine tools of the assembly industry, and good quality is the pursuit of customers and the strongest support for the company to take off.
