Huasheng Heavy Duty Cnc Lathe With Fanuc - China

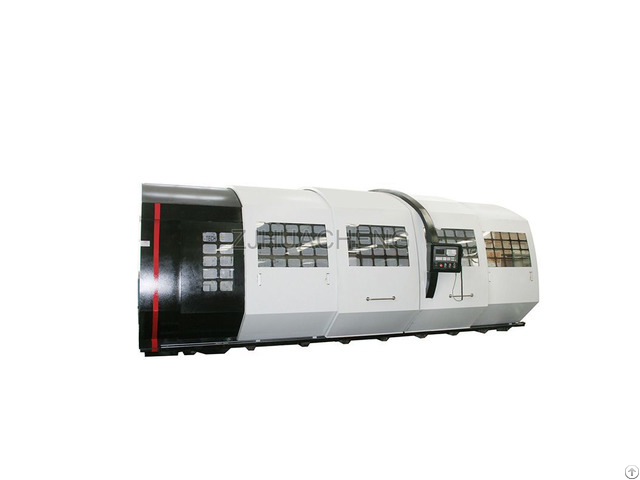

Huasheng-Heavy-duty CNC Lathe With FANUC, SIEMENS or GSK numerical control system

It has programmable controller (PC) and CRT display, linear and arc interpolation; The longitudinal and transverse feed with AC servo motor, pulse encoder feedback, the bed guide rail has high-strength ultra audio frequency quenching and then precision grinding;

Heavy-duty CNC Lathe manufacturer: Zhenjiang Huasheng Intelligent Technology Co., Ltd

The bed saddle pasted with plastic, and has little friction coefficient Variable frequency step-less speed regulation OR spindle servo motor step-less speed regulation Wide cutting range, can process outer circle, inner hole, end face, cutting groove, cone surface, chamfer, cone or cylindrical thread and arc surface

We are Heavy-duty CNC Lathe factory

MODEL SK61128 SK61148 SK61168 SK61198 SK61208

Max swing over bed 1280mm 1480mm 1680mm 1980mm 2080mm

Max swing over cross slide 840mm 1040mm 1240mm 1540mm 1640mm

Center distance 2, 3, 4, 5, 6, 8, 10, 12, 14, 16M

Max.

turning length 1600, 2600, 3600, 4600, 5600, 7600, 9600, 11600, 13600, 15600mm

Spindle hole 130mm

Bed width 1100mm

Diameter of tailstock sleeve 260mm(With built-in small spindle)

Max distance of moving tool-post

Longitude 1600, 2600, 3600, 4600, 5600, 7600, 9600, 11600, 13600, 15600mm

Transverse 800mm

Spindle speeds(Number) Four control frequency conversion 5-20 15-60 25-100 65-250

Main motor power 30kw

Speed of high-speed movement

Longitude 4000mm/min

Transverse 3000mm/min

Tool numbers on tool-post 4 (option: 6, 8)

Positioning accuracy

Longitude 0.05mm

Transverse 0.03mm

Repeatability

Longitude 0.025mm

Transverse 0.012mm

Repeatability accuracy of tool-post 0.005mm

NET WEIGHT

SK61168*4000mm 22000kg

FLOOR SPACE(L*W*H)

SK61168*4000mm 7300*3000*2500
