Huasheng Light Duty Cnc Lathe - China

Huasheng-Light-duty CNC Lathe

MODEL CK6163 CK6180 CK61100 CK61120

Max swing over bed 630mm 800mm 1000mm 1200mm

Max swing over cross slide 300mm 470mm 670mm 830mm

Center distance 1500, 2000, 3000, 4000, 5000, 6000, 8000, 10000, 12000mm

Max.

turning length 1200, 1700, 2700, 3700, 4700, 5700, 7700, 9700, 11700mm

Spindle hole 105mm 105mm(option: 130mm)

Bed width 600mm

Max distance of moving tool-post

Longitude 1200, 1700, 2700, 3700, 4700, 5700, 7700, 9700, 11700mm

Transverse 420mm 520mm

Spindle speeds 6-20, 18-70, 70-245, 225-750rp

4 -files step-less speed change

Main motor power 15KW variable frequency motor

Speed of high-speed movement

Longitude 6m/min

Transverse 4m/min

Feed resolution

Longitude 0.01mm

Transverse 0.005mm

Tool numbers on tool-post 4 (option: 6, 8)

Positioning accuracy

Longitude 0.04/1000mm

Transverse 0.03mm

Repeatability

Longitude 0.016/1000mm

Transverse 0.012mm

Repeatability accuracy of tool-post 0.005mm

Center distance NET WEIGHT

1500mm 4300kg 4500kg 4700kg 4900kg

2000mm 4300kg 4500kg 4700kg 4900kg

3000mm 4300kg 4500kg 4700kg 4900kg

Center distance FLOOR SPACE(L*W*H)

1500mm 3460*1830*1730 mm

2000mm 3960*1830*1730 mm

3000mm 4960*1830*1730 mm

With FANUC, SIEMENS or GSK numerical control system, has programmable controller (PC) and CRT display, linear and arc interpolation;

Spindle is three supporting structures, with 4-files (mechanical gears) and step-less speed regulation within file.

The feed system is directly driven by the AC servo motor, longitudinal ball screw and transverse ball screw are driven by the synchronous toothed belt to realize the half closed-loop control of the whole machine.

The large carriage guide rail is pasted with plastic, and the middle carriage guide rail adopts dovetail guide rail to reduce friction and low-speed crawling;

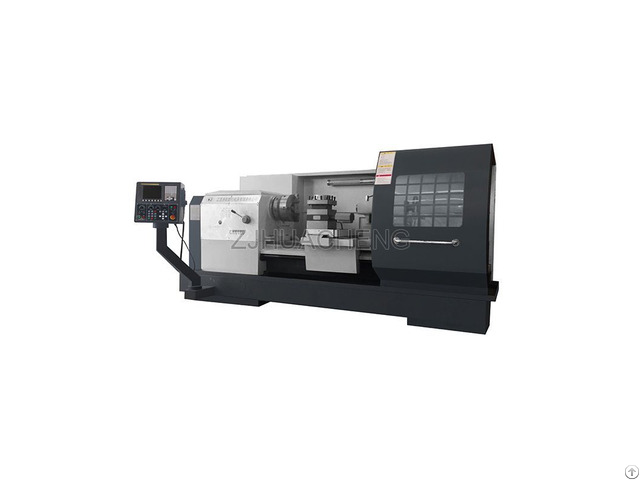

GSK numerical control system lathe

The guide rail surface and ball screw are lubricated by the timing and quantitative lubrication system.
