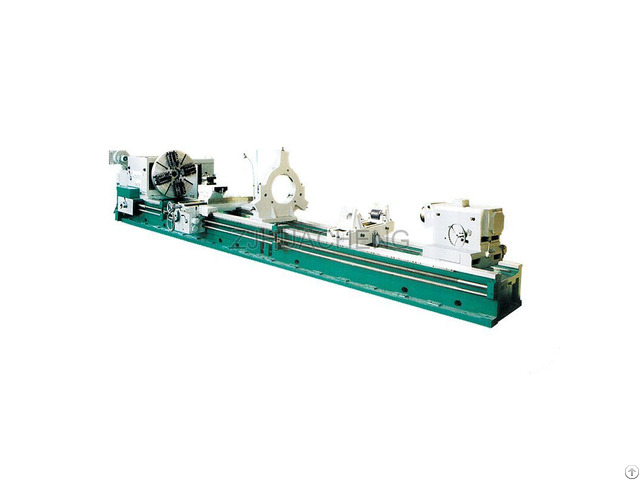

Cw 6 Unniversal Heavy Duty Lathe - China

Model cw61126 cw61146 cw61166 cw61186 cw61206

　capacity 　max.

swing over bed 1260mm 1460mm 1660mm 1860mm 2060mm

　max.

swing over cross slide 760mm 960mm 1160mm 1360mm 1560mm

　center distance 2m, 3m, 4m, 5m, 6m, 8m, 10m, 12m

　width of bed 1180mm(rectangular guideway)

　max.

weight of workpiece 20t

　head stock 　spindle hole Φ105mm

　spindle taper Φ140mm taper 1: 7

　spindle speeds (3-24; 6-48; 12-96; 24-200)hydraulic pressure 4 stage stepless speed change

cear box-threads&feeds metric threads range(pitch) 1-60mm

　inch threads range(inch) 1/2-30

longitudinal feeds range 0.1-6mm/spindle every turn

　cross feed range 0.05-3mm/ spindle every turn

　rapid feed: long/cross 3400mm/min, 1700mm/min

　tool-post 　tool section 45×45mm

　carriage 　cross slide travel 700mm 800mm

　compound rest travel 280mm

　tailstock 　sleeve diameter Φ280mm (with built-in small spindle)

　sleeve taper Φ100 taper 1: 7

　sleeve travel 300mm

　motor 　main motor 55kw(dc)

　rapid feed motor 1.5kw

　tailstock motor 1.5kw

this huasheng-heavy duty lathe is a universal lathe, suitable for high speed steel and hard alloy cutter to process axial parts, cylinder type and disk parts of different materials, turning excircle, section, slot, boring holes and inner cone.

it also turning various threads.

unniversal heavy-duty lathe supplier: huasheng

spindle is three supporting structure, driven by dc motor, spindle speed range is 3-200r/min with 4gear stepless speed regulating.

lathe adopt rectangular guide ways.

the whole bed seems to be a box with high rigidity.

lathe is equipped with a separate pump, forced lubrication, carrige box, the tool post, saddle, tailstock can fast moving.

heavy-duty unniversal lathe has high rigidity, high efficiency, safe and reliable, convenient operation and attractive appearance etc.
