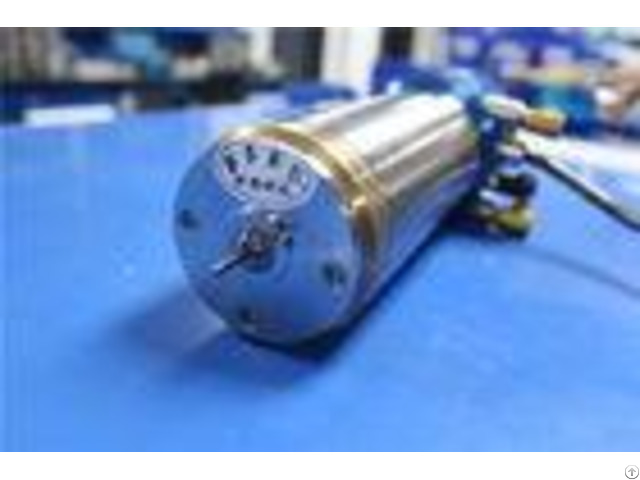

Electro Grinding Cnc High Speed Spindle Compatible H516d D1722 160000rpm - China

Compatible H516D/D1722 160, 000RPM KL161 CNC High Speed Spindle PCB Drilling Quick Detail : - - - -

MODEL | REPLACE FOR | DESCRIPTION | KEY PRECISION | Machine reference | KL161D | H516D

D1722 | SPEED RANGE: 20, 000 - 160, 000 rpm

6.35mm-0.05mm precision drilling | Static Runout: <2m

Dynamic Runout: <7m

Vibration: 1.0MM/S | KLINGINBERG PLURITEC

HITACHI

LENZ

ANDERSON .

| - - - - PRODUCT DESCRIPTION MODEL: KL161

REPLACE FOR : H516D ; D1722

SPEED RANGE : 20, 000 - 160, 000 rpm

BEARING TYPE : Air bearing

SPINDLE WEIGHT : 4.1kg

COLLET SIZE : 1/8

BODY SIZE : 61.9

FREQUENCY (HZ) : 334-2760

SENSOR OR WITHOUT SENSOR FOR CHOOSE Max power : 0.85KW

Coolant : Water oil

Fixed voltage : 200V

Fixed current : 4A

Static Runout : <2m

Dynamic Runout : <7m

Vibration : 1.0MM/S Competitive Advantage : LOW STATIC

LOW DYNAMIC RUN OUT

STABLE CHARACTER AND LONG LIFE

SUITABLE FOR PRECISION DRILLING APPLICATION :

PRINT CIRCUIT BOARD PRECISION DRILLING

HOLE RANGE : 6.35mm-0.05mm MACHINE REFERENCE: KLINGINBERG PLURITEC HITACHI LENZ ANDERSON .

SPECIFICATION : - - - -

Air Pressure | 6.0 kgf/cm | Coolant water temperature | 20+2 | Static runout | <2m | Dynamic runout | <7m | Collet torque(N.

cm) | >=150( 1/8) | Vibration | 1.0MM/S | Collet size | 1/8 | Temperature sensor ohms K | R=0.15% AT 25 | Open air pressure | <5 kg/cm | Close air pressure | >2 kg/cm | Coolant water flux | >1.5(L/min) | Coolant oil flux | >3.0(L/min) | Air consume flux | 74(L/min) | Radial load | 6.0kgf | Air Pressure | 6.0 kgf/cm | - - - - KL161 OUTLINE DRAWING Why choose KLKJ? With nearly 15 years technology in spindle maintenance, 10 years success experience for spindles parts production, and 9 years spindle R&D, KLKJ succeed in offer air bearing spindle up to 200krpm.

All spindles at the KLKJ are fully checked and tested using stringent quality control procedures.

KLKJ ensures every repaired spindle passes the following points to make it in long life and stable character : 1 - Air flow 2 - Water flow 3 - End float/lift off 4 - Axial load (inner) 5 - Axial load (outer) 6 - Torque 7 - Static RUNOUT 8 - Dynamic RUNOUT 9 - Motor check 10 - Vibration 11 - Material analysis & strictly quality test detection control 12 - Stringent tolerance control
