Pcb Drilling Routing Spindle Westwind Air Bearings M320 64c - China

Quick Detail: - - - - MODEL | Version | Name | OEM part No.

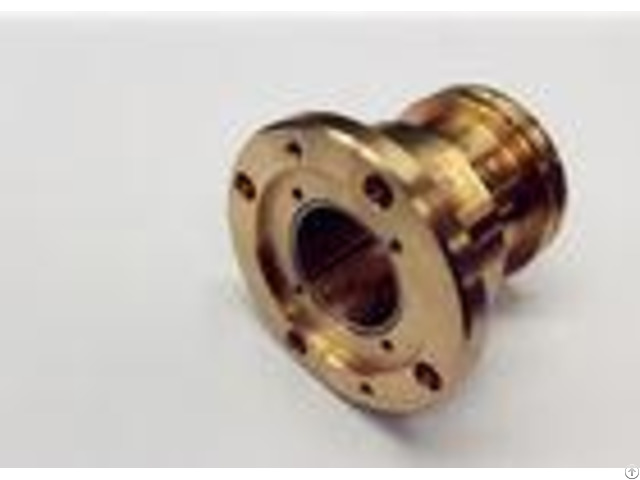

| Max Speed | Application | M320 | - 64C | AIR BEARING | 37359A, 14252A, 39706P | 80, 000 rpm | PCB drilling or routing spindle | - - - - Description: M320-64C Westwind Air Bearing Of PCB drilling or routing Spindle Front bearing, rear bearing and thrust bearing (outer thrust plate) with high precision, high quality, is using for Westwind M320-64C spindle.

The spindle is suitable for PCB drilling or routing in the Pluritec machine.

80, 000rpm high speed optimizes the spindle performance, to produce high precision hole, or make sure the router edge is fine grade.

Type: Front Bearing, rear bearing, thrust bearing (outer thrust plate) Process: Lathe or cutting, milling, grinding, boring, inspection, etc.

Accessory : Speed sensor ( Can be with or without, only for thrust bearing) Whats air bearing? An air bearing is a non-contacting system where a gas film (typically air) acts as the lubricant that separates the two surfaces in relative motion.

Why use air bearing? There are benefits for air bearing, as follows: l Greater precision l High speed l Increased tool life l Improved surface finish l Long bearing life l Low thermal growth l Lack of maintenance l Large load capacity l Reduced vibration Cleanliness Specifications: - - - - AIR BEARING LIST FOR PCB SPINDLE | MODEL | SPEED (RPM) | APPLICABLE TO | M320-24 | 80K | PCB drilling or routing | M320-64C | 80K | PCB drilling or routing | ABWR80 | 80K | PCB drilling | ABW110 | 110K | PCB drilling | D1331 | 125K | PCB drilling | H912B | 125K | PCB drilling | D1201-21 | 125K | PCB drilling | D1524 | 125K | PCB drilling | H501A(D1264-07) | 125K | PCB drilling | H512A(D1600-01) | 125K | PCB drilling | D1531-09 | 150K | PCB drilling | H516D(D1722-03) | 160K | PCB drilling | H916B | 160K | PCB drilling | H916C | 160K | PCB drilling | D1769-03 | 160K | PCB drilling | D1686 | 180K | PCB drilling | D1780-01 | 180K | PCB drilling | D1787-07A | 200K | PCB drilling | H920B | 200K | PCB drilling | H920A | 200K | PCB drilling | H920E1 | 200K | PCB drilling | D1822-09 | 200K | PCB drilling | D1787-01 | 200K | PCB drilling | UH30AL | 300K | PCB drilling | More than above models can offered please contact us for details.

| - - - - Communication with Customers Cus: Do you have M320 bearing? KLKJ: Yes.

May we know which version of the spindle? Cus: I need M320-64C.

KLKJ: Good, the bearing for M320-64C can be supplied now.

Cus: OK, I want to order FB, RB, TB each one.

KLKJ: Thanks.

Do you need speed sensor or not for TB? Cus: I check.

KLKJ: OK, please email us after you confirmed.

Cus: OK.

KLKJ: Thank you.
