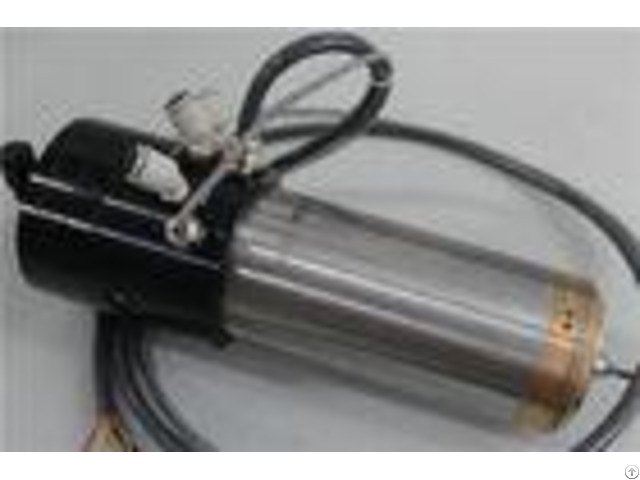

Water Oil Air Bearing Cnc High Speed Spindle 0 9kw 60000 Rpm Spindle - China
price: 1500.00 Dollar US$
Compatible D1822 200, 000RPM KL200L CNC High Speed Spindle PCB Drilling Quick Detail : - - - - MODEL | REPLACE FOR | DESCRIPTION | Application | Machine reference | KL200L | D1822 | SPEED RANGE:
20, 000 - 200, 000 rpm
6.35mm-0.05mm
precision drilling | Static Run Out: <2m Dynamic Run Out: <8m Vibration: 0.5 MM/S | KLINGINBERG
PLURITEC
HITACHI
LENZ
ANDERSON .
| - - - - PRODUCT DESCRIPTION MODEL: KL200L
REPLACE FOR : D1822 SPEED RANGE: 20, 000 - 200, 000 rpm BEARING TYPE : Air bearing SPINDLE WEIGHT : 4.3kg COLLET SIZE : 1/8 BODY SIZE : 61.9 Max power : 0.9KW Air Pressure : 6.0 -6.5kgf/cm Coolant : Water oil Fixed voltage : 215V Fixed current : 4A FREQUENCY (HZ) : 334-3570 PTC SENSOR (Data pl.
inquiry) Competitive Advantage :
LOW STATIC
LOW DYNAMIC RUN OUT STABLE CHARACTER AND LONG LIFE
SUITABLE FOR PRECISION DRILLING APPLICATION :
PRINT CIRCUIT BOARD PRECISION DRILLING
HOLE RANGE : 6.35mm-0.05mm MACHINE REFERENCE: KLINGINBERG PLURITEC HITACHI LENZ ANDERSON .
SPECIFICATION : - - - - Coolant water temperature | 20+2 | Static runout | <2m | Dynamic runout | <8m | Collet torque(N.
cm) | >15.2( 1/8) | Vibration | 0.5MM/S | Temperature sensor ohms K | R=0.105% AT 25 | Open air pressure | <5.0kg/cm | Close air pressure | >2.5 kg/cm | Coolant water flux | >0.8(L/min) | Coolant oil flux | >1.5(L/min) | Air consume flux at 20krpm | 58(L/min) | Radial load | 6.0kgf | - - - - Spindleoutlinedrawing
Company Contact:
- Posted By: KLKJ Group Company
- Phone: 86-769-82084050
- Address: Building G, Yikai Industrial Park, No. 182 Kuiqing Road,Qingxi Town, Dongguan,Guangdong,523650 ,China, Dongguan , Guangdong , China
- Email:
Published date: May 22, 2018
- Business Description: KLKJ GROUP CORPORATION LIMITED headquarter locates in DONG GUAN China, Company branch extend to KUN SHAN, HONG KONG of CHINA and Bangkok of Thailand.
It grows stably since it was started in 1999 -
During more than 15 years, KLKJ are leading expert in PCB drilling and routing spindles, besides.
