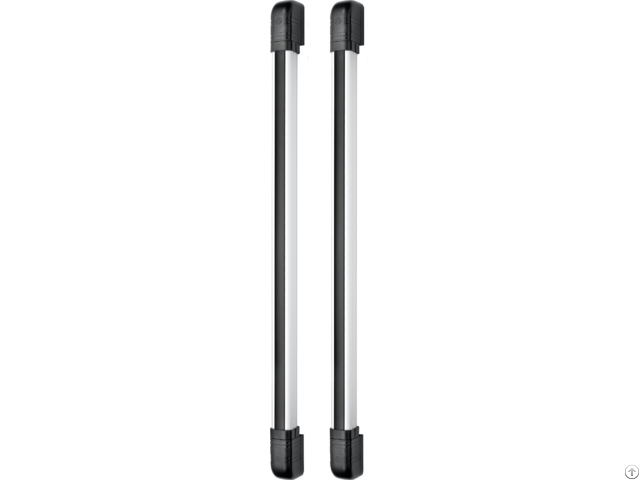

Outdoor Ip65 Active Infrared Barrier Ir 10 100 M 6 Beam - China

6 Beams IR Infrared Barrier ALEAN active infrared barriers, The active infrared barriers are advanced perimeter protection detectors.

For detection of the protected area, we use infrared beams that are transmitted continuously between the transmitter and the receiver.

Operating range of the barriers, as much as max detection range 100m.

could protect types of entrance.

Introduction : - Dormant defense and protection baluster makes the intruder found in no any sense.

- Complete defense ability: It can detect any activation of the burglar, the intruder cannot jump over or crawl to evade the infrared bundle.

- Excellent anti-interferential ability: No false report when inspects, leaves or other small animal pass by.

- Function of damage-resistance: It will output alarm signal once the power or cable are cut.

- Available in 2 optional frequencies in compliance with international standards.

- Top grade aluminum alloy casing and choice components, good stability and reliability, excellent anti-jamming.

- Rain, fog and snow proof, outdoor use.

Dismantle and cut prevention, anti-move, two-beam recognition principle can avoid misinform caused by little animal or flying birds.

- 360° stepless rotation, quick and precise focusing, unique connection terminal, convenient installation and adjustment.

- Convenient connection adjustment, indicator light and voltage output indication tell the strength of accepting signal.

Product Parameter Power supply: DC 9-30V Current consumption: 50-120mA Temperature: -30℃-+70℃ Alarm output: NO/NC optional (factory default NC), contact capacity 30V 2A Detection method: block two adjacent beams (single beam alarm can be set) Alarm duration: ≥1S (instant alarm can be set) Independent tamper output: when the shell is removed, NC output Response speed: ≤40ms Optical axis adjustment angle: horizontal 180°, vertical is non-adjustable Other additional functions: LED indication, buzzer prompt Material: aluminum, PC engineering plastics Product Feature And Application Protection for window and door, the entrance for residence zone, industrial park.
