Photoelectric Ir Beam Detector Outdoor 100m - China

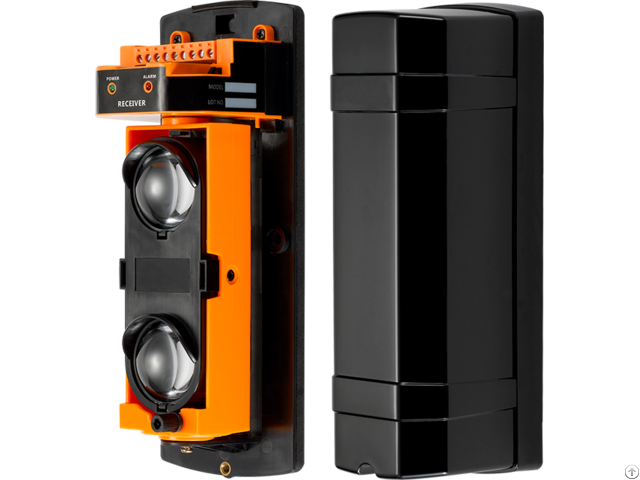

2 Beam Active Infrared Detector Products Introduction 2 Beam active infrared detector are mainly used in home anti-theft systems like villas and independent courtyards.

Compared with infrared barriers, it has stronger ability to prevent rain, dust and interference .

Common active infrared detectors have two beams, three beams, and four beams, with distances ranging from 40 meters to 300 meters.

It has many advantages, such as: 1.4 frequencies selectable for long distance and stacking installation; 2 - Double-precision digital display signal strength; 3 - Interruption time adjustable, user can adjust it according to environment and scenes; Product Parameter Model ABT-40F ABT-60F ABT-80F ABT-100F

Detection Range Outdoor 40m 60m 80m 100m Indoor 120m 180m 240m 300m

Maximum Arrival Distance 250m 350m 500m 600m

Detection Method Simultaneous interruption of 2 infrared beams

Interruption Time 50ms, 100ms, 300ms, 700ms (selectable)

Frequencies 4 different channels selectable

Power Supply DC9～30V/AC9～20V

Current Consumption 70mA max 75mA max 80mA max 85mA max

Alarm Period ≥1.5sec

Alarm Output 1C.

relay output (AC/DC30V, 1.0A max)

Tamper Switch NC, opens when cover removed

Protection Degree IP65

Operating Temperature -25℃ to +55℃

Environment Humidity 95% max

Alignment Angle Horizontal 180°(±90°), Vertical 20°(±10°)

Mounting Outdoor or indoor, Wall or Pole

Material PC engineering plastic

Dimension (L*W*H) 212*80*75mm

Weight (Transimtter and Receiver) 1000g

Attachments U bracket 2pcs, 70.4*37.5*21.5mm, δ=1.5mm, stainless steel Pole mounting srew 4pcs, PM4*30mm

Wall mounting screw 4pcs, PM4*25mm

Expansion pipe 4pcs, Φ7*27mm, green

Installation paper 2pcs, W85*H220mm

Heaters

(additional purchase) Voltage DC9～30V/AC9～20V Current 200mA max

Temperature +70℃ For more info, please contact laura at alean.
