Outdoor Quad Beam Detector Ir 250m Max - China

4 Beam Active Infrared Detector Products Introduction ALEAN provides various options for Active Infrared Detector with weather proof shell and alternative frequency modulation function, generating timely alerts and comprehensive security for perimeter-protected areas.

Perimeter Protection is an external perimeter security system for detection of intruders outside – before they can do any damage.

ALEAN provides a full range of products, including various options for beam number, different frequencies selectable for long distance and stacking installation.

1 - NC/NO relay outputs, compatible with other brand alarm systems like Honeywell, Bosch, Paradox, DSC, and GE etc.

2 - Digital filter technology, well performance against direct sunlight, fluorescent and car light.

3 - Adjustable interruption time (50/100/300/700msec optional).

4 - LED display signal grade for easy alignment.

Product Parameter Model ABH-50L ABH-100L ABH-150L ABH-200L ABH-250L

Detection Range Outdoor 50m 100m 150m 200m 250m Indoor 150m 300m 450m 600m 750m

Maximum Arrival Distance 300m 600m 900m 1200m 1500m

Detection Method Simultaneous interruption of 4 infrared beams or a group of 2 infrared beams Interruption Time 50msec, 100msec, 300msec, 700msec (corresponding to 20, 21, 22, 23) Beam frequency 4 channel selectable (corresponding to 10, 11, 12, 13) Power Supply DC9～30V/AC9～20V Current Consumption 70mA max 80mA max 90mA max 100mA max 110mA max

Alarm Period 2sec (±1) Alarm Output 1C.

relay output (AC/DC30V, 0.5A max) Tamper Switch NC, opens when cover removed Operating Temperature -25℃ to +55℃ Environment Humidity 95% max Alignment Angle Horizontal 180°(±90°), Vertical 20°(±10°) Mounting Wall or Pole Protection Degree IP65 Material PC engineering plastic Dimension (L*W*H) 395mm×105mm×100mm Weight (Transmitter and Receiver) 3000g Heaters

(additional purchase) Voltage DC9～30V/AC9～20V Current 200mA max

Temperature +70℃

Note: When environment temperature lower than -20℃, please use heaters to ensure normal working.

Heater is non-polarized.

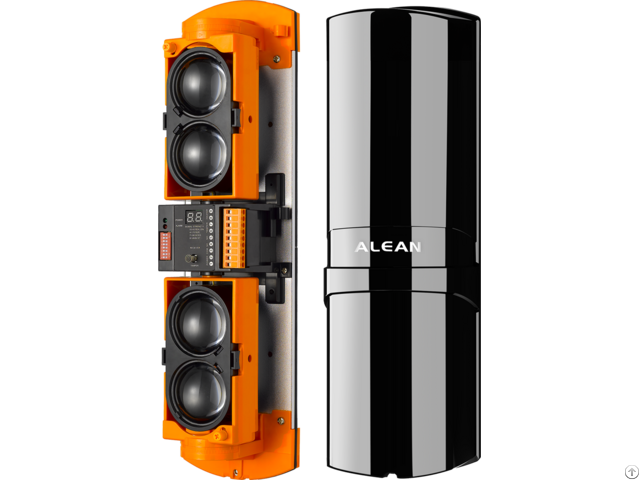

Product Feature And Application 1 2 Production Details ALEAN 4 beam active infrared detector adopt high-precision aspheric lens, high conversion rate of light focusing, uniform and clear spot image formation; New design, good focusing effect, easy to alignment, long receiving and transmitting distance.

High waterproof range is IP 65, effectively responds to bad weather such as wind, frost, snow, fog, tide and direct sunlight.

According to the external environmental change, adjusted to its working state to minimize the false alarm rate caused by it.

Advanced digital filtering technology, compared with traditional analog filtering, with more accuracy and greater stability.

303 Product Qualification 304 FAQ 1 - Fault : The light is interrupted, receiver gives an alarm and the indicator light is off .

Analysis: 1 - The reflection or other transmitter light enter the receiver 2 - The two beams of light are not blocked at the same time 3 - The shading time is too short Solution: 1 - Remove the reflective object or change the direction of the optical axis 2 - Block 2 beams at the same time 3 - Extend the shading time 2 - Fault: Optical axis shows repeated voltage jumps Analysis: 1 - Poor grounding of switching power supply shell 2 - The optical axis is not aligned 3 - The signal is too weak Solution: 1 - Ground the shell 2 - Adjust the optical axis 3 - Replace the long-distance infrared detector Hot Tags: 4 beam active infrared detector, China, suppliers, manufacturers, factory, buy, price, quotation, made in China, Pulse Electric Fence, Outdoor Warning Siren, 4 Wires Pulse Electric Fence, 4 Beams Active Infrared Barrier, 8 Beams Laser Intrusion
