Multi Core Flexible Shielded Signal Cable - China
price: 5.19 Dollar US$
Product Description

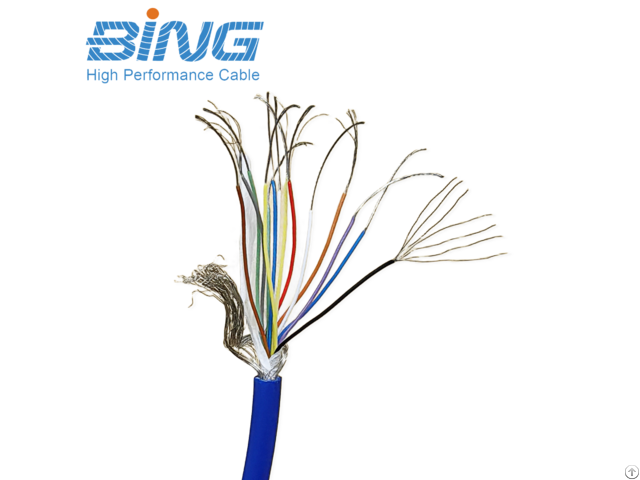

This product is a multi-core flexible shielded signal cable.
The standard specification is 14-core AWG30, and customization is available for 2 to 50 cores, with the cross-sectional area ranging from 0.01mm² to 10mm².
The conductor is made of tinned copper wire or silver-plated copper wire, and insulated with Teflon.
It is available in various colors including yellow, green, blue, black, white, brown, red, orange, purple and gray, and customized colors are also supported.
The cable adopts stranded cores, non-woven fabric as the binder tape, and lapped shielding with a coverage density of over 90%.
The outer sheath is made of PVC, with an outer diameter of no more than 4.57mm.
The standard colors of the outer sheath are green, black, gray and yellow, and customized sheath colors can be provided as required.
Product Features
Operating temperature range: -40℃ to +120℃
Rated voltage: 300/600V
Excellent performance: high temperature resistance, flame retardancy, good flexibility and slim profile
Environmental compliance: fully meets the latest RoHS environmental protection standards
Application Scope
It is widely used for high-frequency signal transmission in electronic and electrical appliances, lighting fixtures, instruments and meters, mechanical and electrical equipment, communication equipment and other electronic equipment.
