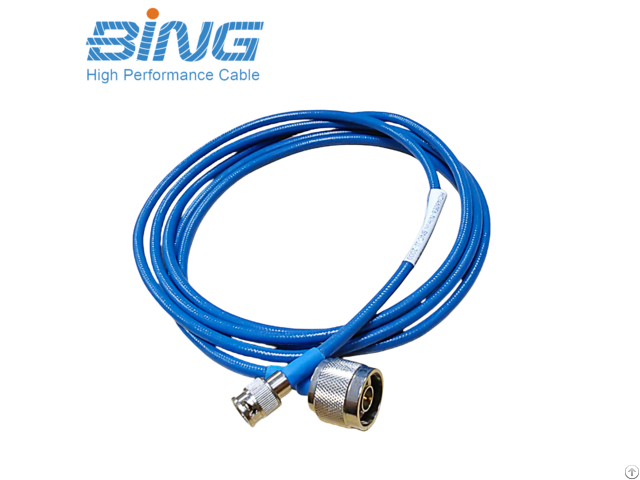

Haj520 Ultra Flexible High Strength Microwave Ablation Coaxial Cable - China
price: 3.33 Dollar US$
Product Introduction
HAJ520 ultra-flexible high-strength microwave ablation transmission cable adopts lightweight, high-performance precious metal as the conductor material, with an outer diameter of no more than 5.20mm.
The outer layer is made of thermoplastic elastomer, featuring excellent softness, high mechanical strength, smooth surface and easy disinfection.
It is compatible with a full range of high-end connectors, including N type, BNC, miniBNC, MCX/RPMCX, SMA and other specifications.
With a VSWR lower than 1.20 at 0~2.45GHz, it fully meets the 96-hour salt spray test requirements.
In practical clinical and equipment tests, HAJ520 can withstand 100W peak power impact, and the temperature of all points on the cable will not exceed 48℃, ensuring safe and stable operation.
Product Features
Special flexible structure with extremely high reliability and bending resistance
Ultra-compact size, outer diameter ≤5.20mm, suitable for narrow assembly space
Smooth surface design, easy for medical disinfection and cleaning
Low operating temperature, no scalding risk in clinical use
High-precision impedance matching for stable signal and energy transmission
Extremely low voltage standing wave ratio (VSWR)
High power transmission efficiency, suitable for high-power ablation scenarios
Universal compatibility with mainstream medical high-frequency connectors
Application Scope
It is perfectly matched with microwave ablation instruments and ablation needles from well-known manufacturers worldwide, especially designed for high-power medical microwave ablation treatment scenarios.
Company Contact:
- Posted By: Shanghai Bing wire & cable company
- Phone: 19370567369
- Address: Room 204,BLDG.6,Lane 4703,Rd.Jiaotong,Shanghai ,China, Shanghai province, China
- Email:
- Website: https://www.bingcable.com/
Published date: February 5, 2026
- Business Description: We are specialize in wire & cable industry more than 20 years.
Our key products include ultra-fine semi-rigid coaxial cables, phase-stable microwave assemblies, high-temperature cables, MIL-Spec wires, and aerospace-grade cables — all developed using advanced materials and manufacturing processes.
If you have any need ,pls contact me ! I'm ready here for help you~
