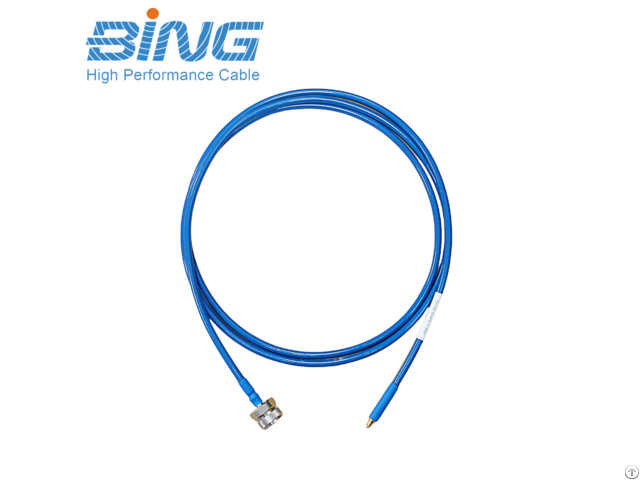

Hcj600 Ultra Flexible High Power Microwave Ablation Transmission Cable 120w - China
price: 2.99 Dollar US$
Product Overview
[Baiyin] HCJ600 "ultra-flexible high-power microwave ablation transmission cable" uses lightweight, high-performance metal as the conductor, with an outer diameter ≤6.0mm.
The outer layer is made of thermoplastic elastomer, offering excellent flexibility, high strength, a smooth surface, and easy cleaning.
The HCJ600 is compatible with various high-frequency connectors including Type N, BNC, miniBNC, MCX/RPMCX, and SMA.
It features a VSWR <1.20 at 2.45GHz and passes a 96-hour salt spray test.
In practical applications, the [Baiyin] HCJ600 "ultra-flexible high-power microwave ablation transmission cable" can withstand peak power shocks of 120 watts, with the temperature at all cable points not exceeding 48℃.
Product Features
Special flexible structure for high reliability
Outer diameter ≤6.0mm
Smooth surface for easy disinfection
Low operating temperature, preventing scalding
High-precision impedance matching
Extremely low voltage standing wave ratio (VSWR)
High power transmission efficiency
Compatible with various types of connectors
Application Scope
Compatible with microwave ablation instruments and needles from major manufacturers, especially suitable for high-power scenarios.
Specification Parameters
Model Outer Diameter (mm) Attenuation (dB/m @ 2.45GHz)
SFCJ-50-3/E 4.60 0.72
SFCJ-50-4/E 5.80 0.55
HCJ600 6.00 0.45
