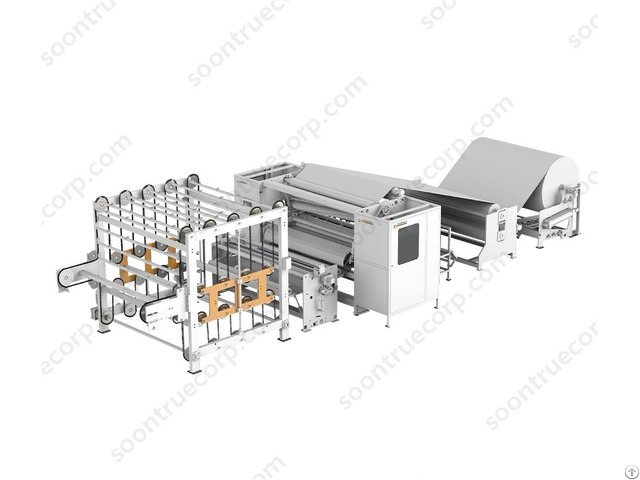

Full Automatic Non Stop Tissue Rolls Rewinder - China

With this non-stop toilet paper rewinding machine, you can produce toilet rolls and kitchen towels.

The machine is very stable with high speed.

PRODUCTS PARAMETER Model Full automatic non-stop tissue rolls rewinder

Applicable jumbo roll max width 3000mm

Production speed 1000meter/min

Applicable max jumbo roll weight 3000kg

Glue lamination unit for your choice

Back stand 5 or customized

Total power rate 44kw+15kw edge slitting

Working noise ≤78dB

Power supply type 380V, 50Hz ●Toilet paper rewinding machine adopting motion control technology and HMI control system, each part is driven and controlled independently in the full - servo execution paper separation mechanism, and the quality control of finished products is guaranteed.

●Toilet Paper Rewinding Machine can be configured with edge embossing unit, gluing and laminating unit, etc., to produce various patterns and types of tissue paper.

●The slitting knife can be configured on the machine, and the packaging machine can be connected to form a complete production line.

●Flexible line group: Optional connection of conveyor belt, large swing, small package machine, medium package machine, large package machine, intelligent full - automatic box packing, gluing and laminating, non - glue laminating, single embossing, double embossing group, etc.

to form a differentiated automatic production line.

●The width of the base paper for this model is selectable: 1400, 1750, 1840mm.

●The rear frame adopts pneumatic paper - feeding function, which greatly reduces the labor intensity of workers.

●The whole machine is designed to discharge paper from the side (left or right direction can be selected at will), and can directly enter the large swing, so it occupies a small area.

●The standard machine does not include the first - half fold, but the first - half fold mechanism outside the machine can be optionally equipped.

●The inverter adjusts the paper - discharge speed according to different base papers.

The whole machine is controlled by the human - machine interface, which is fast, simple, stable, and has high performance and a wide range of applications.

●The spiral horizontal single - cutting roller group is adopted: There is a spiral paper - cutting blade to ensure consistent cutting angle, low cutting noise, uniform force on the tool, and low loss.

The structure is simplified, the space is ample, and the adjustment and maintenance are very convenient.

When the knife roller is overloaded, it can rotate to unload the force, effectively protecting the surface knife and bottom knife.

●The folding roller used: (1) It is made of imported special materials for composite processing, and the rigidity of the roller body is greatly improved.

Regardless of high or low - speed cutting, it can stably break the paper, and there is less noise during high - speed cutting.

(2) The front and rear ends are suctioned to ensure sufficient vacuum to absorb the paper, resulting in higher paper - stacking accuracy, better stability, and a neater paper surface.
