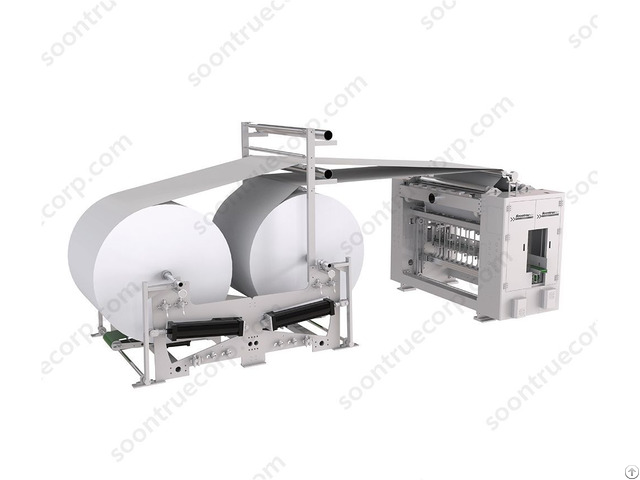

Full Automatic Hand Towel Inter Folder Sczj 200 1500 - China

This machine is for hand towel product for high product, it will transfer the product directly to the packing machine, no need after -treatment device.

PRODUCTS PARAMETER

No Item Technical parameters

1 Max jumbo roll width 1450mm

2 Jumbo roll diameter <=¢1500

3 Release speed(m/min) ＜110

4 Inner core diameter ￠76.3mm

5 Machine structure Wall type frame

6 Jumbo roll weight(t) Max 0.8

7 Rewind stand system Based band conveyor belt

8 Jumbo roll centralization manual adjustment

9 Roll open type clockwise

10 Jumbo roll web type manual

11 Tissue Break detecting with break tissue detecting system and will stop the machine to reduce the waste

12 Back wind power KW 1.5x2=3KW

13 Min pressure requirement 0.6Mpa

14 Air consumption 1000lifter/shift

15 Stand transmission type independent motor control

16 Loading type cylinder uploading

17 Transmission

18 Paper send belt belt transmission

19 Paper width Screw transmission

20 Other

21 Protection main transmission parts are protected by the safe guard Hand Towel Tissue Paper Production Line

●Hand Towel Tissue Paper Production Line adopts motion control technology and HMI control system, full servo execution paper separation mechanism, and each part is independently driven and controlled;

●It can be configured with edge pressing unit and gluing compound unit, etc.

to produce various patterns and types of Hand Towel Tissue Paper;

●The base paper width of this model can be selected: 1400, 1750, 1840mm;

●Adopts spiral transverse single cutting roller group: with spiral paper cutting blade, it ensures consistent cutting angle, low cutting noise, uniform force on the knife and low loss.

The structure is simplified, the space is ample, and the adjustment and maintenance are very convenient.

When the knife roller is overloaded, the knife roller can rotate to unload the force, effectively protecting the top knife and bottom knife;

●The folding roller used: (1) It adopts imported special material composite processing, and the rigidity of the roller body is greatly improved.

It can stably break the paper regardless of high or low speed cutting, and has less noise when cutting at high speed.

(2) It adopts suction at the front and rear ends to ensure that there is enough vacuum to absorb the paper, and the paper stacking accuracy is higher, the stability is good, and the paper surface is more neat.
