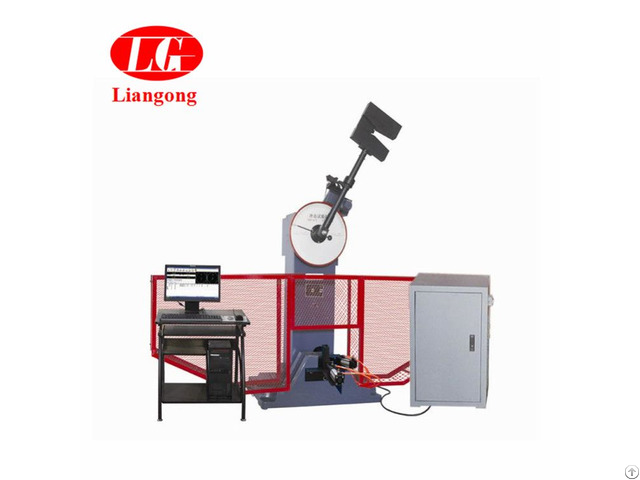

Jbw 300z Computer Control Room Temperature Automatic Charpy Impact Testing Machine - Chinaprice: 12000.00 Dollar US$
This equipment is used to measure the resistance of metal materials to impact under dynamic load in order to judge the properties of the material under dynamic load.
Using the difference between the potential energy before the impact of the pendulum and the remaining potential energy after the impact is displayed on the dial, to obtain the absorption work of the sample.
The maximum impact energy is 300J, and also attached one pendulum of 150J, and the cross section of the sample used is (10 × 10) mm.
The operation adopts semi-automatic control, easy to operate, high working efficiency.
Using the residual energy after the pendulum breaking the sample, it can automatically raise the pendulum, and it can reflect its superiority when continuously performing specimen impact test.
It is mainly used in measurement and quality inspection, technical supervision departments, metallurgy and iron and steel, machinery manufacturing, pressure vessels, automobile production, universities, research institutes and other industries.
Technical Parameters Computer Control Room Temperature Automatic Charpy Impact Testing Machine Machine model JBW-300Z Impact energy 300J 150J Dial scale range and indexing value Energy range 0-300J 0-150J Indexing value for each cell 2J 1J Pendulum torque M=160.7695N·m M=80.3848N·m Pendulum preparing angle 150° Pendulum shaft center of rotation to the impact point distance (sample center) 750mm Impact speed 5.2m/s Specimen support span 40mm Round corner of support jaw R (1.0~1.5)mm (1mm is special ordered.
) Blade curvature radius R (2.0~2.5)mm (8mm is special ordered.
) Specimen holder support surface angle 11° Impact blade angle 30° Impact blade thickness 16mm Measuring angle range 0-360° Angle resolution ≤0.06° Specimen dimension 10×10×55 mm (Thickness 7.5mm, 5mm is special ordered.
) Specimen box capacity 10 pieces Delivery speed ≤4S Machine host weight 430kg Power supply Three phase four-wire, 380V 50Hz 400W
- Posted By: Jinan Liangong Testing Technology Co.,Ltd.
- Phone: +86 18854162067
- Address: Room 605, Fortune Times Square,Jingshi Road, Huaiyin District, Jinan , Shandong , China
- Website: http://www.lgtester.com
Published date: October 21, 2021
- Business Description: Our factory is the professional manufacturer in the Chinese Material Physical Testing Machine Industry, which include the UTM and TTM series, Impact Test series, Compression Test series, Cupping Tester series, Hardness Tester and Metallographic products, etc.
