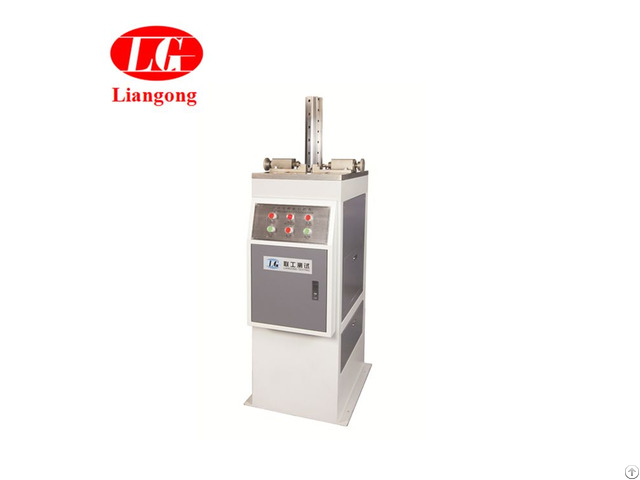

Csl Y Impact Specimen Gap Hydraulic Broaching Machine - China

price: 4500.00 Dollar US$

Product description The impact sample notch broaching machine is the only device that can process the notch of the qualified Charpy impact sample except for the optical curve grinder in the country.

The machine adopts the processing principle of one-time forming, and the machined notch has excellent uniformity.

This equipment is a necessary special equipment for metallurgy, boiler pressure vessels, vehicles, engineering machinery manufacturing and scientific research institutions and other departments.

Standard GB/T229-2007 Metallic materials -- Charpy pendulum impact test -- Part1: Test Method ISO148-1-2009 Metallic materials -- Charpy pendulum impact test -- Part 1: Test method ISO148-2-2008 Metallic materials -- Charpy pendulum impact test -- Part 2: Verification of testing machines Technical Parameters Model: CSL-Y Specimen gap shape: V-or U-(2mm) Processing the Specimen size: 10*10(7.5 or 5)*55mm Drive mode: Hydraulic Broach stroke: 350mm Broach Materials: W18Cr4V Cutting speed: 2.5m/min Power: 3-phase 4-wire 380V 50Hz 0.4KW Main motor 0.37KW Dimensions (mm): 660*400*1200mm Weight: 200Kg Working condition: 1 - Room temperature 20°C±5°C 2 - Relative humidity less than 85% 3 - Surrounding environment is non-corrosive medium, no vibration, no strong electromagnetic interference .


Company Contact:


  • Phone: +86 18854162067

  • Address: Room 605, Fortune Times Square,Jingshi Road, Huaiyin District, Jinan , Shandong , China

  • Email: Email


Published date: October 21, 2021

  • Business Description: Our factory is the professional manufacturer in the Chinese Material Physical Testing Machine Industry, which include the UTM and TTM series, Impact Test series, Compression Test series, Cupping Tester series, Hardness Tester and Metallographic products, etc.
