Full Auto Rockwell Hardness Tester Irock D1 S1 T1 - China

1 - Function：

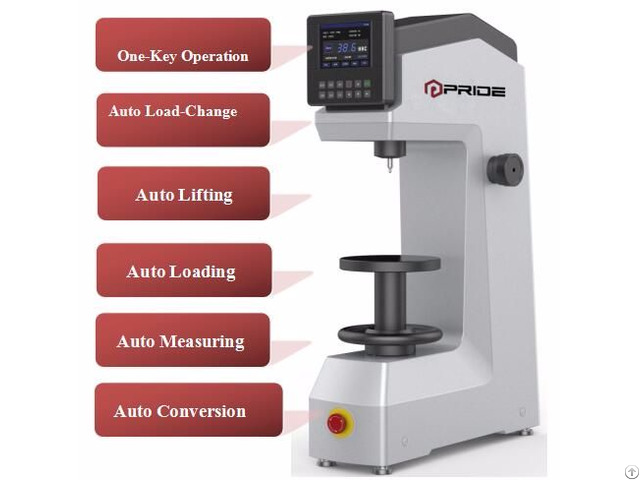

● A kind of Full-auto Intelligent Digital Rockwell Hardness Tester, available to test Rockwell and Superficial Rockwell hardness automatically.

● One-key operation, auto lifting, auto load-change, auto loading/dwell/unloading, auto conversion, auto testing.

● Equipped with friendly operation interface, 5.2“ color touch screen directly display test force, dwell time, conversion value, indenter type, etc.

● Auto calculating and displaying test result, Max, Min, Ave, and hardness deviation.

Resolution is 0.1HR.

● Available to set up upper and lower limit, with the function of over-error warning, data analysis chart, single test and group test.

● With software compensation function, available to compensate ±3HR, need not mechanical adjustment.



● With function of auto conversion according to ASTM E140, without checking hardness contrast table.

● Available to switch languages: Chinese, English, German, Portuguese, Turkish, Czech, Korean.

● Available to save 2000 single test results and 1000 group test results.

Can realize data viewing and analysis

● With optional wireless Bluetooth printer, there is no need to record results and report by hand.

● With optional data analysis software and Bluetooth receiver to input and analyze data.



● Support FexQMS data analysis and control software, improve integral control and decrease material consumption.



Application Range：

◆Rockwell B Scale HRB: Copper alloys, soft steels, aluminum alloys, malleable iron, etc.

◆Rockwell C Scale HRC: Steel, hard cast irons, pearlitic malleable iron, titanium, deep case hardened steel, and other materials harder than B100.

◆Rockwell A Scale HRA: Cemented carbides, thin steel, and shallow case-hardened steel.

2 - Technical Specifications：

Model Auto Rockwell Hardness Tester iRock-D1 Full-auto Superficial Rockwell Hardness Tester iRock-S1 Full-auto Twin Rockwell Hardness Tester iRock-T1

Preliminary Test Force 10Kgf(98.1N) 3Kgf(29.4N) 3Kgf(29.4N);10Kgf(98.1N)

Total Test Force 60Kgf(588.4N), 100Kgf(980.7N), 150Kgf(1471N) 15Kgf(147.1N), 30Kgf (294.3N), 45Kgf(441.3N) 15Kgf(147.1N), 30Kgf

(294.3N), 45Kgf(441.3N);

60Kgf(588.4N), 100Kgf

(980.7N), 150Kgf(1471N)

Rockwell Scale HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV

Superficial Rockwell Scale HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y

Full Rockwell Scale HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV;15T, 30T, 45T;15T, 30T, 45T;15W, 30W, 45W;15X, 30X, 45X;15Y, 30Y, 45Y;15N, 30N, 45N

Dwell Time 1-60s adjustable

Display Screen 5.2 ”Color touch screen; Resolution：640*480

Resolution 0.1HR

Loading Mode Auto loading/dwell/unloading

Conversion Scale HRC, HV, HBS, HBW, HK, HAR, HRD, HR15N, HR30N, HR45N, HS, HRF, HR15T, HR30T, HR45T, HRB

Conversion Standard ASTM, DIN

Language Chinese, English, German, Portuguese, Turkish, Czech, Korean

Software Correction -3.0HR ~ +3.0HR, step value 0.1HR

Data Processing 2000 group single dat, line chart of group data function; respectively provide single data viewing and group data viewing

Print Optional wireless printer

Max.

Height of Specimen 280mm

Throat 170mm

Power Supply AC 220V/50Hz;AC110V/60Hz

Dimension 620 x 210 x 900mm

Packing Dimension 735×525×1025 (mm)

Net Weight /Gross 125Kg/140Kg

Execution standard JJS Z2245, EN-ISO6508, ASTME-18

3 - Standard accessory

Name Qty Name Qty

Instrument Main Body 1pc Ø1.588mm Ball Indenter 1pc

Hardness Block 1pc Ø1.588mm Steel Ball 1pc

Hardness Block HRC 1pc Diamond Indenter 1pc

Hardness Block HRB 1pc Weight A 1pc

Hardness Block HR30N 1pc Weight B 1pc

Hardness Block HR30T 1pc Weight C 1pc

Ø150mm Flat Anvil 1pc Accessories Box 1pc

Ø60mm Flat Anvil 1pc Anti-dust Cover 1pc

Ø40mm V-shape Anvil 1pc Operation Manual/Qualified Certificate/Warranty Card 1pc
