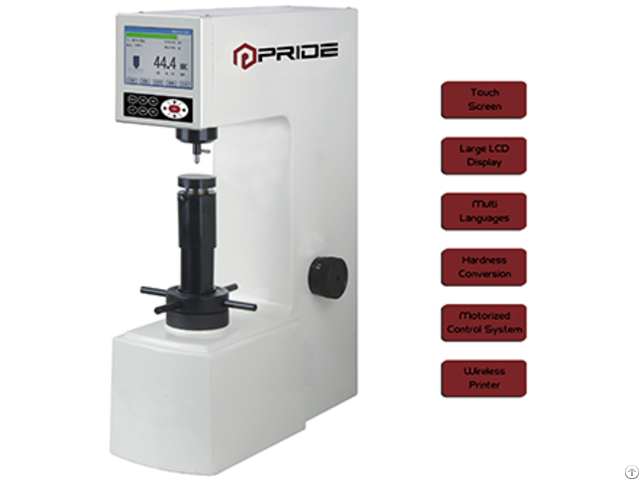

Color Touch Digital Rockwell Hardness Tester Rh 300t - China

Features：

● Half automatic hardness tester except loading initial force and change force knob.

Operation is very convenient

and fast.

● Color touch screen, displays loading force, indenter type, dwell time, and conversion scale.

● Motorized control loading, dwell and unloading, eliminates error by manual operation.

● Built-in micro processor auto compute max, min, mean and deviation value, resolution is 0.1HR, largely improve accuracy.

● Auto hardness conversion to others scales, no need to check table and improve working efficiency.

● Support Multiple languages, English, Turkish, German, etc.

Convenient for local customers operation.



● Save 2000 single testing results and 1000 group results for reviewing and analysis

● Optional blue tooth mini printer is available.

Application:

●Rockwell B Scale HRB: Copper alloys, soft steels, aluminum alloys, malleable iron, etc.

●Rockwell C Scale HRC: Steel, hard cast irons, pearlitic malleable iron, titanium, deep case

hardened steel, and other materials harder than B100.

●Rockwell A Scale HRA: Cemented carbides, thin steel, and shallow case-hardened steel.

Specifications:

Rockwell Scales HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK,

HRL, HRM, HRP, HRR, HRS, HRV

Preliminary Test Force 10Kgf(98.07N) Permitted Error：±2.0%

Test Force 60Kgf(588.4N), 100Kgf(980.7N), 150Kgf(1471N)

Permitted Error：±1.0%

Dwell Time Adjustable 1-60s

Hardness Indication 5.2” Touch Screen, Resolution: 640x480

Resolution 0.1HR

Loading Control Auto Loading/Dwell/Unloading

Hardness Conversion HRC, HV, HBS, HBW, HK, HRA, HRD, HR15N, HR30N,

HR45N, HS, HRF, HR15T, HR30T, HR45T, HRB

Conversion Standards ASTM, DIN

Language Option Chinese, English, German, Portuguese, Turkish, Czech, Korean

Correction Range -3.0HR to +3.0HR, Step 0.1HR

Data Memory 2000 Single Measuring Result, Curve Analysis, Results

Reviewing And Analysis

Data Output Optional Blue Tooth Mini Printer

Max.

Height Of Specimen 175mm

Instrument Throat 165mm

Power supply AC220V/50Hz;AC110V/60Hz

Dimension(LxWxH) 520 x 215 x 700mm

Packing Dimension 630 x 440 x 960mm

Gross/Net Weight 120Kg/90Kg

Execution Standard GB/T230.2, JJS Z2245, EN-ISO6508, ASTME-18

Standard accessory

Name Qty Name Qty

Instrument Main Body 1pc Ø1.588mm Ball Indenter 1pc

Hardness Block (57-70) HRC 1pc Ø1.588mm Steel Ball 1pc

Hardness Block (20-33) HRC 1pc Cone Diamond Indenter 1pc

Hardness Block (85-100) HRB 1pc Weight A 1pc

Ø 150mm Flat Anvil 1pc Weight B 1pc

Ø 60mm Flat Anvil 1pc Weight C 1pc

Ø 40mm V-shape Anvil 1pc Power Cable 1pc

Accessories Box 1pc Instrument Manual 1pc
