All Rockwell Hardness Tester 574rst - China

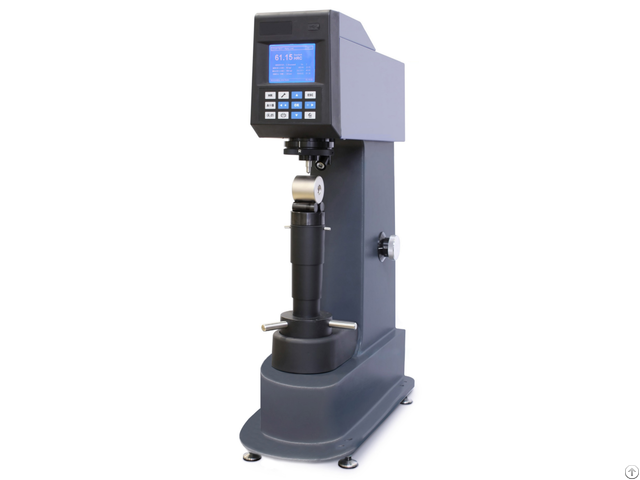

The Rockwell 574RST Hardness Tester is a proven, durable, and reliable deadweight testing instrument.

This system is available in Regular, Superficial and Twin Scale models and capable of testing in all of the regular Rockwell hardness scales (60, 100, and 150 kg major test forces), superficial Rockwell hardness scales (15, 30, and 45 kgf major test forces) and can accommodate a wide variety of applications.

The Rockwell 574RST Hardness Tester includes a rugged industrial design, a brand new user-friendly LCD panel, and a built-in USB port for rapid data transfer to Microsoft Excel or other applications.

All Rockwell R574 Series Hardness Testers are equipped with a powerful auto-braking system on preload ensuring seamless operation, as well as a high-precision depth measurement system for accurate and repeatable testing.

The 574 Series Rockwell Hardness Testers offer quality, durability, and an industry leading Gauge Repeatability and Reproducibility making this hardness testing instrument best in class.

Features:

USB port for data transfer

Crisp, intuitive LCD display with test status, hardness values, statistics, and six languages

Specimen lighting with adjustable illumination levels

Dial selectable loads

Durable industrial design to withstand harsh environments

Automatic minor load braking system

Technical Specifications

Hardness Capabilities Regular Superficial Plastic

Hardness Scales A, B, C, D, E, F, G, H, K, L, M, P, R, S, V 15N, 30N, 45N, 15T, 30T, 45T, 15W, 30W, 45W, 15X, 30X, 45X, 15Y, 30Y, 45Y A, B, C, D, E, F, G, H, K, L, M, P, R, S, V, 15X, 30X, 45X, 15Y, 30Y, 45Y

Preliminary Load 10 Kg

(98.07 N) 3 Kg

(29.42 N) 3, 10 Kg

(29.42, 98.07 N)

Test Loads 60, 100, 150 Kg

(588.4, 980.7, 1471 N) 15, 30, 45 Kg

(147.1, 294.2, 441.3 N) 15, 30, 45, 60, 100, 150 Kg

(147.1, 294.2, 441.3, 588.4, 980.7, 1471 N)

Test Force Application Type Calibrated Spring (Minor Load), Dead weight stack (Major load)

Dwell Time Minor Dwell Time: 0.1 - 50.0 seconds

Major Dwell Time: 1.0 - 50.0 seconds

Elastic Recovery: 0.2 - 50.0 seconds

Vertical Testing Capacity 289 mm (11.43 in) accessories may decrease available capacity

Test Cycle Type Motorized (Manual preload, auto trip, auto brake)

Specimen Illumination Adjustable LED

Standards Compliant ASTM E18, ASTM D785, ASTM B294, ISO 6508, JIS Z2245, GB/T 230

Conversion ASTM E140, ISO 18265, DIN 50150, GB T1172 Convert up to 4 scales simultaneously

Statistics Number of Tests, Mean, Standard Deviation, Maximum, Minimum Range, CP, CPk, Individual test hardness numbers (displayed in a scrolling vertical list)

Languages English

Data Memory 999 per each hardness scale

Data Output USB and RS-232

Resolution 0.1 or .

01 HR (adjustable)

Throat Depth 175 mm (6.93 in) at the top, 155 mm (6.13 in) at the bottom

Machine Dimensions Overall height: 934 mm (36.83 in)

Overall width: 292 mm (11.53 in)

Overall depth: 566 mm (22.3 in)

Maximum Specimen Weight 100 Kg (220 lb)

Machine Weight 75 Kg (165 lb)

Power Supply 100 - 240V AC 60/50 Hz

Applications Steels, Coppers, Cast Irons, Thin Materials, Shallow and Deep Case Hardened Materials
