Yinuolink High Quality Ar9341 Chipset Industrial Lte Wifi Router - China

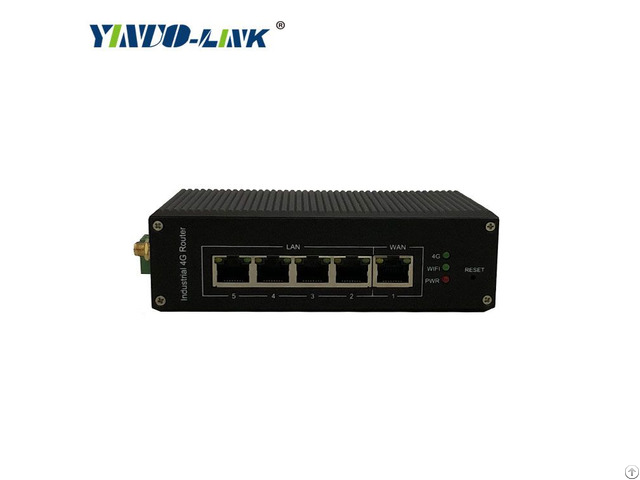

YN-AR41AP-A2 is industrial DIN rail 4G wireless router, wireless support 802.11N, max up to 300Mbps, can be customized according to customer requirements, YN-AR41AP-A2 is based on industrial-grade application of high-performance wireless router.

Use the world-leading Atheros solution, the CPU is clocked at 550MHz, wireless supports 802.11N, and it is perfectly compatible with third-party firmware such as OpenWrt to meet customer secondary development.

It is also a high-performance 4G wireless router YN-AR41AP-A2 which is completely an industry universal router.

Supports wireless, mobile receiver distance is in 50-150M, can wear 2-3 walls.

1 - jpg ♦ Complies with IEEE 802.11n, IEEE 802.11g/b, and IEEE 802.3/3u standards ♦ Wireless transmission rate up to 300M ♦ 1 WAN port, 4 Fast LAN ports, all support auto-negotiation and port auto-flip ♦ Transmit power up to 27dBm (max) with SKYWORKS and two SE2576 ♦ The power network port SIM card holder are with static and surge protection ♦ Supports hard watchdog design ♦ Support WDS wireless bridging, easy expansion of wireless networks ♦ Supports broadband access methods such as PPPoE, dynamic IP, and static IP ♦ Automatic dialing, on-demand dialing, scheduled dialing, to meet a variety of dialing requirements ♦ Supports SSID broadcast control and MAC address-based access control list ♦ Provides 64/128/152-bit WEP encryption and supports WPA/WPA-PSK and WPA2/WPA2-PSK security mechanisms ♦ Built-in firewall, support for IP, MAC, URL filtering, can flexibly control access to the Internet and access time ♦ Built-in DHCP server can automatically and dynamically assign IP addresses ♦ All Chinese/English configuration interface, support free software upgrade ♦ Adopting the world-leading Atheros solution, the CPU is clocked at 550MHz, wireless supports 802.11N, and is perfectly compatible with third-party firmware such as OPENWRT to meet customers' secondary development ♦ Support Open-Wrt 1a.

jpg 4G Module Technical Parameters

4G Module Model SLM370

Platform Qualcomm

Packaging Features 52-pin Mini-PICe

SLM370C7B LTE-FDD: B1/B3/B5

LTE-TDD: B38/B39/B40/B41

TD-SCDMA: B34/B39

WCDMA: B1 EVDO&CDMA: BC0

GSM: 900/1800

Operating Temperature -40~+80°C

4G Antenna Sucker Antenna*2 or Small Omnidirectional Antenna*2

LTE Speed Rate(Mbps) LTE CAT 1: 10(DL)/5(UL)

LTE FDD: 150(DL)/50(UL) LTE TDD: 130(DL)/35(UL) DC-HSPA+Speed Rate(Mbps) 42(DL)5.76(UL)

WCDMA Speed Rate(Mbps) 384(DL)384(UL)

TD-SCDMA Speed Rate(Mbps) 4.2(DL)2.2(UL)

EVDO RevB Speed Rate(Mbps) 14.7(DL)5.4(UL)

CDMA 1x Speed Rate(Mbps) 153.6(DL)153.6(UL)

EDGE Speed Rate(Kbps) 236.8(DL)236.8(UL)

GPRS Speed Rate(Kbps) 85.6(DL)85.6(UL)

Interface SIM (1.8V/3V)UART USB 2.0 HS I2C Analog Voice(Optional)PCM Voice ADC GPIO Antenna(ANT_PRI/ANT_DIV/G PS_ANT)

Special Function DTMF TTS TCP/IP FTP HTTP RIL Driver

(Andriod 4.2/4.4/5.0/5.1/6.0/7.1)

NDIS(Window X P/Vista/7/8/10)

Gobinet(Linux 2.6 or later)

GNSS(Optioan)Firmware Update(USB/*FOTA) 2a.

jpg WiFi Technical Parameters

Model YN-AR41AP-A2

CPU Atheros AR9341(550MHz)

Working Frequency 2.400-2483MHz

Standard Support IEEE802 - b / g / n standard

Operating Mode AP, Repeater, Router

Transmit Power Highest 27dbm (500mW), Max power can be adjusted by software

Wireless Speed 2T2R 300Mbps Max RF Power 27dBm

Modulation Technology 802.11n 2x2 MIMO, 802.11a: OPDM, 6Mbps: -95dmb

802.11n, MCS0: -88dbm, MCS7: -73dbm

RAM 64MB

Flash 8MB

WiFi Antenna 2Dbi Omnidirectional Antenna * 2

Wireless Function Peripheral site detection / channel scan

Priority AP Connection Setting Binding (BSSID)

Automatic channel selection

Security Strategy Encryption: -WEP, TKIP, AES

Wireless Security: Open Systems, Shared Secret, WPA / WPA-PSK, WPA2 / APA2-PSK, 802.1x (PESP, TLS, TTLS), WAPI

System Service Support Virtual DMZ, Port Forwarding Support UPNP automatic port mapping

WEB based management tools, built-in WEB server

Configuration Management Support telnet connection, syslog records system operation log, SSH service function

Troubleshooting Automatic detection of network status, network connection can be automatically after disconnected

Support Watchdog and Pingdog function

Power Supply POE supports wide voltage input 12-48V

Power Consumption <=15W

Operating Temperature -30°C~+75°C

Storage Temperature -40°C~+85°C

Working Humidity 0-100%

Application Areas Can be widely used in mobile broadband, industrial routing, automotive and transportation, wireless payment, green energy, smart meter, smart industry, medical guardianship, car DVR, personal tracking, industry plate, charging pile, video monitoring

and other fields 4 - jpg7 - jpg8 - jpg5 - jpg6 - jpg 7a.

jpg
