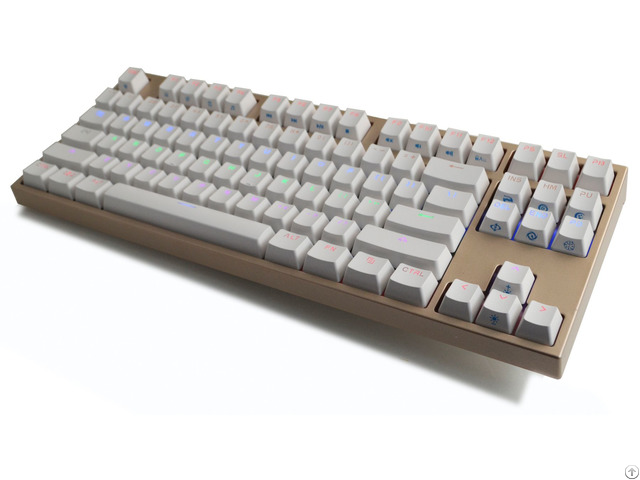

Mechanical Compact Size Backlit Gaming Keyboard - Taiwan

Excellent for gaming and typing, the GKB-087A mechanical Compact-size LED backlit keyboard features tactile, clicky switches for tactile and audible feedback to improve typing speed and accuracy.

LED backlit has 6 illuminating pattern for selection.

This keyboard can support real N-Key rollover function.

Gaming user can play game without any brothering from ghost keys.

SPECIFICATION

Key Number : 87/ 88 keys (US/ EU)

Key Switch : Mechanical Key Switch with Laser Etched ABS Keycaps

Housing : Metal upper cover with ABS Bottom cover

Travel Distance / Key force : 2 + 0.6 mm / 50g

Interface : USB 1.1, compatible with USB 2.0

LED Color : Cool Blue (option for other colors)

Special Setting for multi-media : Fn + F1 My Computer Fn + F7 Play/ Pause

Fn + F2 Open Browser Fn + F8 Stop

Fn + F3 Calculator Fn + F9 Mute

Fn + F4 Open Media Player Fn + F10 Volume Decrease

Fn + F5 Previous Track Fn + F11 Volume Increase

Fn + F6 Next Track Fn + F12 Lock all Keys

LED lumination Pattern : Fn + Esc Backlit Solid on Fn + PgUp Marquee

Fn + Del Breath in Sleep Fn + PagDn One Key backlit

Fn + Ins Random Fn + Home Ripple

Fn + End Assign one key backlit On or Off

Other Setting : Fn + Win Lock Windows Key Fn + Win + L Lock Short-cut Key

Operating Temperature : 0 to 50 degrees Celsius (10% to 95% RH, 25 degree Celsius)

Storage Temperature : -10 to 65 degrees Celsius (5% to 90% RH, 25 degree Celsius)

Physical Dimension / Weight : 361.0 (L) x 138.0 (W) x 43.0 (H)mm / 1.04 kg (N.W.)

Box Dimension / Weight : 410.0 (L) x 192.0 (W) x 50.0 (H) mm / 1.29 kg (G.

W.

)

Compatibility : Compatible with Windows XP, Vista, Windows 7, Windows 8
