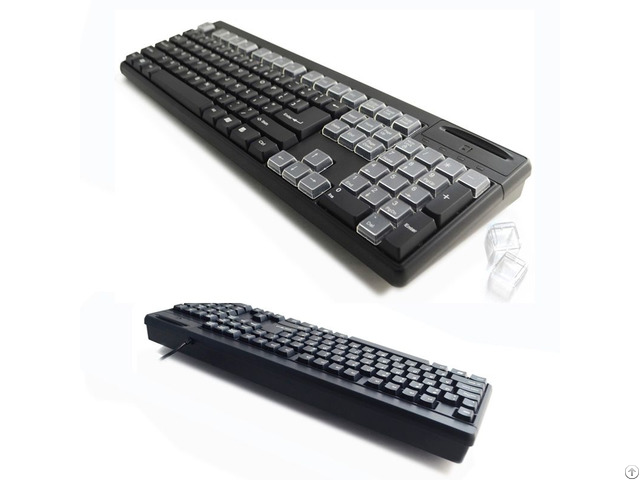

Full Size Usb Keyborad Built In Smart Card Reader - Taiwan

FEATURES

The Digimore programmable Smart Card USB Keyboard, PKB-6880-SCR is design for use with smartcard enabled identification system.

This keyboard comes with 40 configurable keys and lets you define repetitive data input.

It is ideal for providing user authentication for applications such as network login, e-government, e-commerce, healthcare and etc.

SPECIFICATION

keyboard

Key Number : 104/ 105/ 109 keys (US/ EU/JP)

Key Switch : Membrane with 20 million life cycle time

Key Force/ Traveling Distance : 50 + 7 gm / 4 + 0.5 mm

Programmable Keys : 40 programmable keys with relengeable keycaps

Input Power : 5 VDC, 100mA

Interface : USB 1.1 version (smart card reader USB 2.0)

LED Indication : 4 LEDs, Num Lock, Caps Lock, Scroll Lock, SCR Read

Tilt Angle w/o feet stand 7.2o

Operating Temperature : 0 to 50 degrees Celsius (10% to 95% RH, 25 degree Celsius)

Storage Temperature : -10 to 65 degrees Celsius (5% to 90% RH, 25 degree Celsius)

Smart Card Reader

Standard : ISO 7816

Protocols : T=0, T=1.2-wire; SLE 4432/42 (S=10), 3-wire; SLE4418/28 (S=9), 12C (S=8)

Reading Speed/ Frequency : 420 Kbps / up to 8MHz

Card Type Support : 5V, 3V and 1.8V smart card ISO 7816 Class A, AB and C

API Support : PCSC, CTAPI, Synchronous-API, OCF

PCSC Driver Support : Windows 98/ME/2K/XP (32bit), 2003 Server Win, Win NT, Windows CE5.0/ CE.

NET, Windows XP 64bit, Windows Vista (32bit/ 64bit), Windows 7, Linux

Reliability : 100K card insertions; (option for 500K card insertions)

Others

Physical Dimension : 442.99 (L) x 149.0 (W) x 39.58 (H)

Box / Weight : 500 (L) x 220 (W) x 55 (H) mm/ 1.1 Kg (G.W.)

Packing Information : 5 pcs/ctn; 1.39 cuft/ctn; 7.0 kgs (G.W.); Carton Dimension: 51.5 x 30.5 x 25 cm
