Full Size Bluetooth Mac Compatible Keyboard - Taiwan

FEATURES

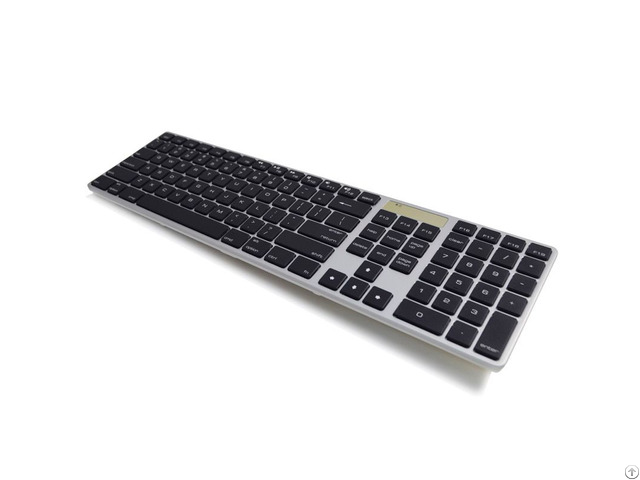

WKB-801, a stylish & low profile Bluetooth keyboard, is at the forefront of cutting edge wireless keyboard.

This ultra-slime full size keyboard equips Bluetooth 3.0 technology with 2 x AA batteries and scissor-type key mechanism among many other features.

It is fully compatible with Mac, iPad, iPhone or other MID such as smart phone or tablet PC and etc.

SPECIFICATION

Key Number : 110/ 111 keys (US/ EU)

Tx Technology : Bluetooth® wireless technology, V 3.0

Antenna/ Antenna Gain : PCB antenna / 0 dBi (Typ)

Frequency/ Channels : 2.402Ghz ~ 2.480Ghz/ 79 channels

Modulation : GFSK (Differential phase shift keying)

Output Power : Normal mode (GFSK): -0.61 dBm

Data Rate / Sensitivity : Up to 2.1Mbps/ <0.1% BER at -70dBm

Operating Range : Up to 8 M (Free space)

Key Switch : Scissor-type Switch with Rubber dome (5 million life cycle time)

Key Force/ Traveling Distance : 55 +/- 7 gm; 2.1 +/- 0.2 mm

LED Indicator x 1 : Indicate pairing (blinking), CapLock (5 Min.

Max.

) and Low battery (blinking slowly)

Function Keys for Mac : F1 Decrease Brightness, F2 Increase Brightness, F3 Expose, F4 Dashboard

Buttons : 1 x power switch, 1 x pairing button

Input Power / Batteries : 3.0 VDC, 100mA / 2 x AA Alkaline batteries

Operating Temperature : 0 to 50 degrees Celsius (10% to 95% RH, 25 degree Celsius)

Storage Temperature : -10 to 65 degrees Celsius (5% to 90% RH, 25 degree Celsius)

Dimension (mm)/ Weight : 434.2 (L) x 115.3 (W) x 23.5 (H) including rubber feet/ 0.6 kgs (NW); 0.8 kgs (GW)

Compatibility : Compatible with Mac OS 10.5.8 or later version, iPad, iPhone 3Gs/ 4, Android tablet PC

Accessories : 2 x AA batteries, User’s Manual, Quick Start Guide

Packing Information : 20 pcs/ctn; 9.8kgs (N.W.)/ctn, 13.8kgs (G.W.)/ctn, carton dimension: 52 (L) x 33 (W) x 27 (H) cm

Company Contact:

• Posted By: DIGIMORE ELECTRONICS CO., LTD.

• Phone: 886-2-23113299

• Address: 10 FL., No. 61, Yan-Ping S. Rd, Taipei , Taiwan

• Email:

• Website: https://www.capacity-keyboard.com

• Business Description: Digimore Electronics Co., Ltd was established in 2004, located in Taiwan.

  Over 20 year experience engineers of PC keyboard design, Digimore has successfully developed a variety of Desktop Keyboards, Membrane-type capacity Gaming keyboard with full N-key rollover support, POS keyboard built-in smart card reader/ magnetic stripe card reader, Programmable POS keyboards, numeric keypads and etc.

  In 2011, we launched several new products of Bluetooth keyboards such as Mac Compatible Keyboards with multi-host switchable support, Bluetooth Keypad and etc.

  We also launched 1st one of low-profile smart card USB keyboard in the world specially designed for Mac.

  In 2016, We've started to provide ODM services with different modules including biometric/ fingerprint modules, keyboard modules and touch pad module for KVM, Bluetooth 3.0, 4.2 & 5.0 module, Bluetooth LaunchPad, 433 Mhz ASK Transmitter and Receiver modules, 2.4 Ghz GFSK Transceiver module, Keyboard Controller, Qi wireless charger module, NFC Forum Type 4 TAG module and etc.

  Thanks to our capability of logic design, we are able to meet customer's demand and to provide excellent, value for money products.

  Your solution provider is in the heart of our business.
