Glsun Fiber Optical Switch For Ftth - China

price: 100.00 Dollar US$

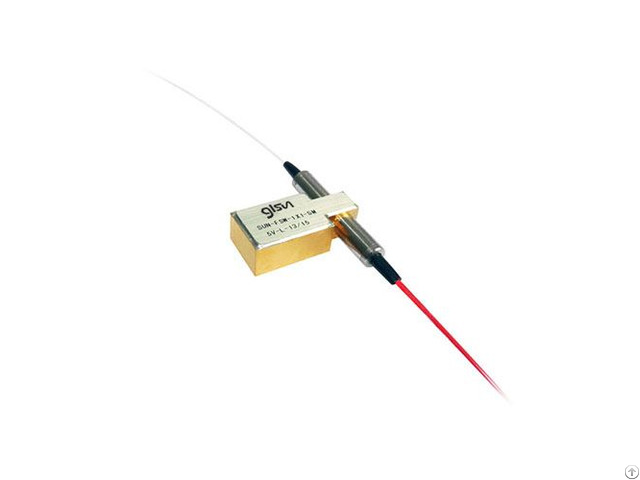

Glsun Fiber Optical Switch For Ftth

Products Photos Catalog Glsun Fiber Optical Photos Catalog

GLSUN 1*1 Optical Switch - Features

·Low Insertion Loss

·Wide Wavelength Range

·Low Crosstalk

·High Stability, High Reliability

·Epoxy-free on Optical Path

·Latching and Non-latching

GLSUN 1*1 Optical Switch - Applications

R&D in Laboratory

System Monitoring

OADM

MAN (Metropolitan Area Network)

GLSUN 1*1 Optical Switch - Specifications

Model No: SUN-FSW-1*1

Wavelength Range 850±40 / 1300±40 1260 ~ 1650 nm

Test Wavelength 850 / 1300 1310 / 1550nm

Insertion Loss 1, 2 Typ: 0.5 Max: 0.8 Typ: 0.4 Max: 0.6

Return Loss 1, 2 MM ≥ 30 SM ≥ 50

Crosstalk 1 MM ≥ 65 SM ≥ 70 dB

PDL≤0.05 dB WDL ≤0.25dB

Repeatability ≤±0.02 dB

Operating Voltage 3V or 5V

Durability ≥ 10 Million

Switching Time ≤8ms

Optical Power ≤500mW

Operating Temperature -20 ~ +70℃


Company Contact:


  • Phone: 86-773-3116006

  • Address: Guanglong S&T Zone, No. 8 High-tech Industry Park, Chaoyang Road, Guilin , GuangXi , China

  • Email: Email


Published date: August 8, 2016

  • Business Description: Founded in 2001, GLsun Science and Tech Co., Ltd , Guilin, China, designs, develops, manufactures and markets advanced optical components and modules.

    GLSUN holds many technical patents on optics.

    Product lines include Optical Switches, Free Space Isolator, MEMS VOA, CWDM/DWDM components, Optical Modules and Custom Optical test systems.

    Since its establishment, GLsun has striven to be an innovative and advanced technical company.

    The companys optical components and custom modules have been deployed to various applications and sub-systems in market segments such as Network Monitoring & Protection, Network Intelligence & Analytics, Service Providers and Network Test Sub-systems.

    GLsun has been growing rapidly and has now become one of the largest Optical Switch & component manufacturers in Asia today.

    The company is well reputed and widely perceived as top quality, cost-effective, Pro-active customer service and technically innovative.
