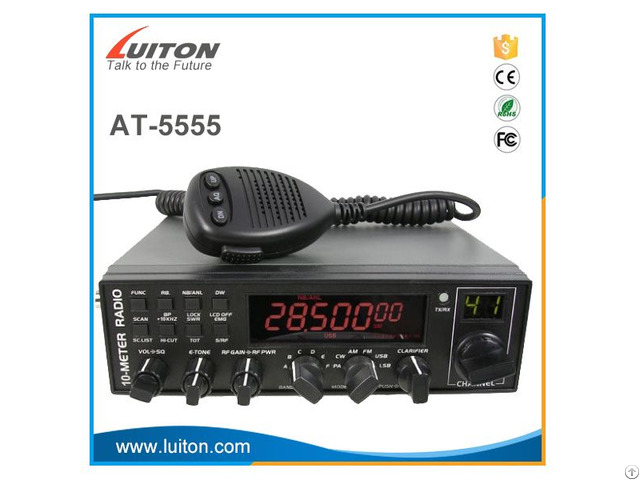

At 5555 Anytone 10 Meter Am Fm Ssb Cb Radio - China

1 Big LCD which displays frequency and all kinds of information

2 DUAL-DIGITAL TUBE FOR CHANNEL DISPLAY

3 USE EL technology for backlight

4 PA, CW, AM, FM, USB, LSB mode

5 A, B, C, D, E, F

6 bands in total, with 60 channels at most in each band to be programmed.

7 Frequency Tuning Step can be 10HZ, 100HZ, 1KHZ or 10KHZ.

8 Multiple CLARIFIER Operating Modes

9 Flexible menu functions and PC programming software to meet varied customer demands

10 ECHO Function

11 SQ, ASQ Function (FM and AM mode only)

12 RF GAIN ADJUSTMENT

13 RF PWR ADJUSTMENT

14 SCAN FUNCTION

15 RB FUNCTION

16 NB/ANL FUNCTION

17 DW DUAL-WATCH FUNCTION

18 BEEP VOICE PROMPT

19 +10KHZ Function

20 SWR, S/RF, DC Voltage display function

21 TOT function

22 HI-CUT FUNCTION

23 EMG CALL

24 SWR PROTECTION

25 POWER SUPPLIED VOLTAGE PROTACTION

26 Key-Lock Function

Frequency Range

25.615MHZ—30.105MHZ( Programmable)

Frequency Band

A/B/C/D/E/F

Channel

60 channels(programmable) in each band

Frequency Control

Phase-Locked-loop Synthesizer

Frequency Step

10HZ 100HZ 1KHZ 10KHZ

Frequency Tolerance

0.01%

Frequency Stability

0.00%

Temperature Range

-30℃ to +50℃

Microphone

Plug-in dynamic;with push-to-talk/UP/DN/ASQ switch and coiled cord

Input Voltage

DC 13.8V normal, 15.9V max;

11.7V min Transmit: AM full

Size

28*25*6CM

Weight

2.8KG

Antenna Connector

UHF, SO239

Transmitter

Power Output

AM/CW: 12W (adjust table)

FM: 2-40W(adjust table)

USB/LSB: 0-30W(adjust table)

Modulation

High and low level class B

Amplitude Modulation: AM

Varied Capacitance Frequency Modulation: FM

Inter-modulation Distortion

SSB: 3rd order, more than -25dB;

5th order, more than -

SSB Carrier Suppression

55dB

Unwanted Sideband

50dB

Frequency Response

AM and FM: 450 to 2500HZ

Saida Impedancia

50ohms, unbalanced

Sensitivity

SSB: 0.25µV for 10dB(S+N)/N at greater than 1/2-watt of audio output

AM: 1.0µV for 10dB(S+N)/N at greater than 1/2watt of audio output

FM: 1.0µV for 20dB(S+N)/N at greater than 1/2 watt of audio output

Selectivity

AM/FM: 6dB 3KHz, 50dB 9KHz

SSB: 6 dB 2.1KHz, 60dB 3.3KHz

Image Rejection

More than 65dB

IF Frequency

AM/FM: 1.965MHz 1st IF, 455KHz 2nd IF SSB: 10.695

Adjacent-Channel

60dB AM/FM & 70dB SSB

Rejection

RF Gain Control

45dB adjustable for optimum signal reception

Automatic Gain

Less than 10dB change in audio output for inputs form 10 to 100, 000 microvolt

Squelch

Adjustable; threshold less than 0.5µV

Automatic Squelch Control(only AM/FM) 0.5µV

ANL

Switchable

Noise Blanker

RF type, effective on AM/FM and SSB

Audio Output Power

4 watts into 8 ohms

Frequency Response

300 to 2800 Hz

Built-in Speaker

8 ohms, round

External Speaker(Not

8 ohms;disables internal speaker when connected.
