Gps Active Antenna For Location And Navigation - China

price: 2.50 Dollar US$

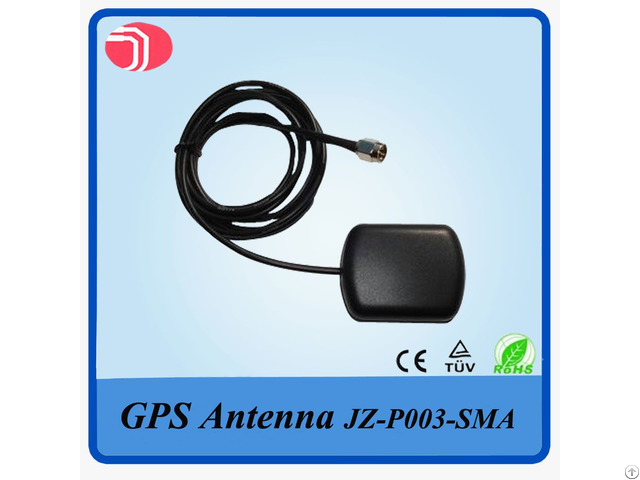

Gps Active Antenna For Location And Navigation

Products Photos Catalog Gps Active Antenna Photos Catalog

Specification

1) Dielectric Antenna

Center Frequency 1575.42 MHz±3 MHz

V.S.W.

R 1.5: 1

Band Width ±5 MHz

Impedance 50 ohm

Polarization Type R.H.C.

P

2) LNA/Filter 　

LNA Gain(w/o cable) 28±2 dB Typical

Noise Figure 1.5 dB

DC Voltage 2.2~5 V

DC Current 5~15 mA

3) Mechanical 　

Mounting Magnet/adhesive

Housing Black

Cable RG174, 3m or others

Connector SMA/MCX/SMB/BNC/Fakra or others

4) Environmental 　

Working Temp.

-40℃~+85℃

Humidity 55%~75%RH

Waterproof IP67


Company Contact:


  • Phone: 86-573-82230666

  • Address: NO.18 Huiyuan Road, Japanese Investment Zone, Youchegang, Jiaxing ，Zhejiang, Jiaxing , Zhejiang , China

  • Email: Email


Published date: August 5, 2016 - Modified date: August 5, 2016

  • Business Description: GPS antenna, GSM antenna, WIFI antenna manufacturer in China.

    Free samples offer you for test, each products test ourselves before deliver to you.

    Good quality, welcome you vist our website.
