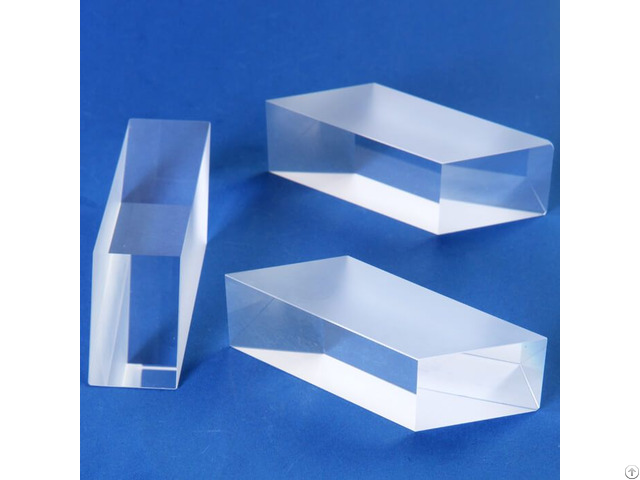

Custom Rhombic Prism Optical Glass Rhomboid Prisms - China
price: 10.00 Dollar US$
Rhombic Prisms are used to display a beam laterally without changing it is direction.
They maybe coated to transmit part of the beam and produce two parallel and displaced emerging beams.
It could be coated to produce a polarizing beam separator.
Dimension and coating may be available by custom orders.
Angle Tolerance: ±5';
Material: H-K9L/UV Fused Silica
Diameter Tolerance: Surface Flatness: 0/-0.1λ/5;
Scratch/Dig: 60/40;
Clear Aperture: >90%;
Bevel: 0.2±45°;
Coating: AR OR BBAR;
Lacquer: GT-7or equivalent; There are many types of prisms, each having a particular geometry to achieve the reflections necessary to perform a specific imaging task.
Reflecting prisms may invert, rotate, deviate or displace a beam.
dispersing prisms produce spectral separation for spectroscopic applications or for tuning a laser output.
JUKA Optical offers many kinds of high precision prisms, please keep in mind that selection of the most suitable prism is primarily dependent on the application.
Company Contact:
- Posted By: Sichuan JUKA Optical Technology Co.,Ltd
- Phone: 19113487350
- Address: No.18, Taixing Avenue, Economic Development Zone, Dujiangyan City, Chengdu , Sichuan , China
- Email:
- Website: http://www.optment.com
Published date: March 18, 2020
- Business Description: Chengdu JUKA Optical Technology Co., Ltd. is a professional manufacturer specialized in producing the high precise optical lenses, prisms and optical instruments.
Our company is located in the repute world-wide optical processing center, Shuangliu, Chengdu, China.
Its former is the processing department of the Institute of Optics and Electronics of the Chinese Academy of Science.
