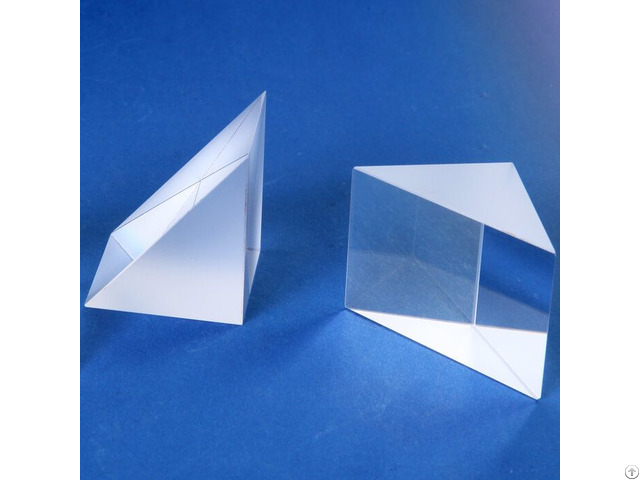

Custom Right Angle Prisms Bk7 Uv Fused Silica Redirect Light At 90 Degrees - China
price: 10.00 Dollar US$
Right angle prisms are used to deflect a beam of light through 90 or 180 degrees.
This can be used as component to create various optical devices.
BK-7 can be used for a range between the visible and infrared light.
fused-silica can be used for a range between ultraviolet and infrared light.
JUKA offers a wide range of different materials and different degree of precision prisms.
Beam Deflection Angle: Material: 90°±3', 180°±5'H-K9L/UV Fused Silica;
Diameter Tolerance: Surface Flatness: 0/-0.1λ/5;
Scratch/Dig: 60/40;
Clear Aperture: Bevel: >90%0.2 ±45°;
Coating: AR OR BBAR;
Lacquer: GT-7or equivalent; There are many types of prisms, each having a particular geometry to achieve the reflections necessary to perform a specific imaging task.
Reflecting prisms may invert, rotate, deviate or displace a beam.
dispersing prisms produce spectral separation for spectroscopic applications or for tuning a laser output.
JUKA Optical offers many kinds of high precision prisms, please keep in mind that selection of the most suitable prism is primarily dependent on the application.
Company Contact:
- Posted By: Sichuan JUKA Optical Technology Co.,Ltd
- Phone: 19113487350
- Address: No.18, Taixing Avenue, Economic Development Zone, Dujiangyan City, Chengdu , Sichuan , China
- Email:
- Website: http://www.optment.com
Published date: March 18, 2020
- Business Description: Chengdu JUKA Optical Technology Co., Ltd. is a professional manufacturer specialized in producing the high precise optical lenses, prisms and optical instruments.
Our company is located in the repute world-wide optical processing center, Shuangliu, Chengdu, China.
Its former is the processing department of the Institute of Optics and Electronics of the Chinese Academy of Science.
