    • Custom Cube Beamsplitter Polarizing Or Non Polarize Optical Beam Splitter - China

    price: 10.00 Dollar US$

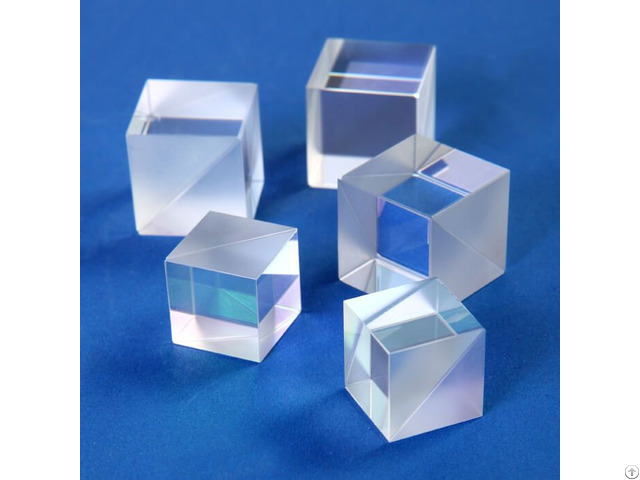

    Custom Cube Beamsplitter Polarizing Or Non Polarize Optical Beam Splitter

    Products Photos Catalog Cube Beamsplitter Photos Catalog

    The optical beam splitter cube prism is mainly divided into polarization beam splitter prism and depolarizing beam splitter prism, which can be produced according to customer requirements.

    Cube Beamsplitter Prism is made of 2 right-angle prisms.

    One of the right-angle prisms has a dielectric light-splitting film layer on it.

    When the light is incident perpendicularly to the incident surface, the outgoing light is divided into two polarized lights.

    Among them, P light is transmitted light, and S light is reflected light.

    After the beam splitting prism splits the original horizontal polarization and vertical polarization in the incident light as much as possible, the optical characteristics of P light and S light have a separation of <5%, low dispersion, and good color neutrality.

    Prism material: K9; BK7;

    Dimension tolerance: + 0 / -0.1mm

    Thickness tolerance: ± 0.1mm

    Angle tolerance: <30 ''

    Surface accuracy: λ / 10-λ / 2

    Finish: 40/20

    Splitting ratio T / R: 50/50

    Chamfer: safety chamfer <0.2X45 °

    Coating: according to customer requirements


    Company Contact:


    • Phone: 19113487350

    • Address: No.18, Taixing Avenue, Economic Development Zone, Dujiangyan City, Chengdu , Sichuan , China

    • Email: Email


    Published date: March 18, 2020

    • Business Description: Chengdu JUKA Optical Technology Co., Ltd. is a professional manufacturer specialized in producing the high precise optical lenses, prisms and optical instruments.

      Our company is located in the repute world-wide optical processing center, Shuangliu, Chengdu, China.

      Its former is the processing department of the Institute of Optics and Electronics of the Chinese Academy of Science.
