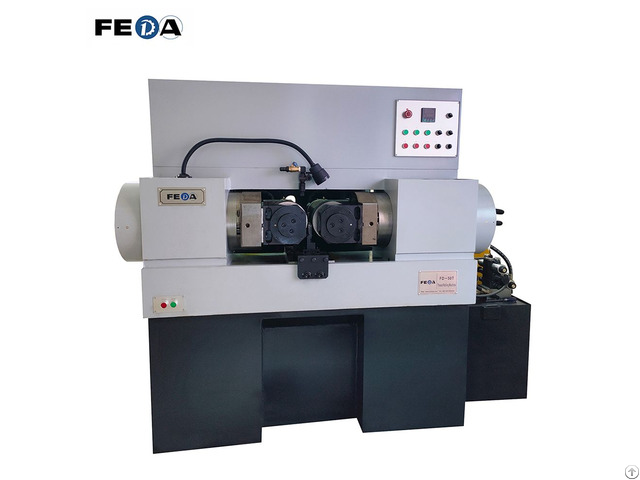

Feda Fd 50t Steel Rod Solid Bar And Cam Type Thread Machine - China
price: 34650.00 Dollar US$
1 - Automatic feeding with adjuatable brackets
2 - Speed is adjutable for different products
3 - 54mm hole diamter for SKD11 thread rolling dies
4 - Max.
Rolling pressure is about 500KN
5 - It is easy to operate and maintain the machine
6 - CE, ISO9001-2008 Working diameter 12-110mm
Thread pitch 1.0-10mm
Thread length In feed or Thru feed
Spindle speed 16/21/27/37/46/62rpm(vari able speed)
Outside diameter of rolling die 170-240mm
Inside diameter of rolling die 85mm Thickness of rolling die 18.5KW
Feed stroke 0-16mm
Main motor 18.5KW
Hydraulic motor 5.5KW
Max rolling pressure 50T
Supply voltage 380V 3P 50Hz
Weight(reference) 5100(KG)
Package Dimension(L*W*H) 2100*2230*1760mm
Dimension(L*W*H) 1650*1720*1700mm
Company Contact:
- Posted By: Shenzhen Feda Machinery Industry Co.,Ltd
- Phone: 19166277530
- Address: Hong Hai Building, Hongxing Community, Songgang Street, Bao'an District, Shenzhen, China, Shenzhen , Guangdong , China
- Email:
- Website: https://www.szfeda.com/
Published date: July 14, 2025
- Business Description: FEDA is a modern state-level high-tech enterprise integrating R & D, production and sales,which focus on manufacturing of thread rolling machine,thread rolling dies, automatic tapping machine, auto lathe machine & vibration bowl for more than 20 years, locates in Shenzhen, China.
