Fd Xy2 Bottle Cap Thread Rolling Machine - China

price: 7350.00 Dollar US$

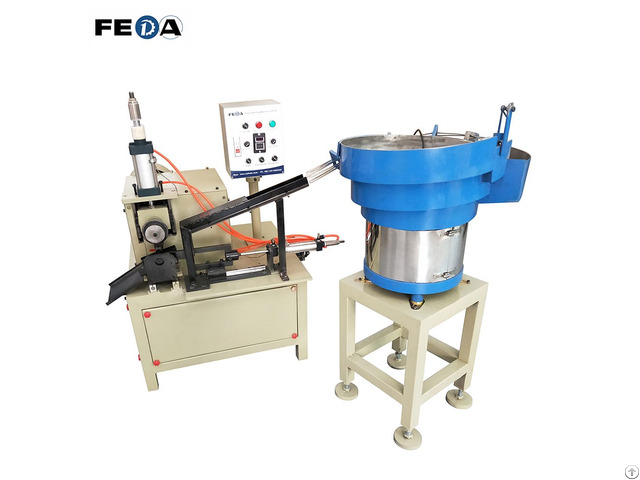

Fd Xy2 Bottle Cap Thread Rolling Machine

Products Photos Catalog Xy2 Bottle Cap Thread Photos Catalog

1 - Specially designed for all kinds of bottle caps

2 - High speed with 60-70pcs/min

3 - Only need to change different dies when you change to make other types caps

4 - It is easy to operate and maintain the machine

5 - Rolling dies have long life time of 12 months or more Specification

Diameter of workpieces 20-80mm

Range of pitch 2-12mm

Thread length Max.

50mm

Max.

Thickness of pipe 1.5mm

Machine motor 2.2KW

Supply voltage 380V 50Hz 3P

Feeding type Vibration bowl

Weight(reference) 500(KG)

Package Dimension(L*W*H) 1400*1500*1200 mm

Dimension(L*W*H) 1330*1120*1050 mm

Working principle Cold extrusion rolling

Application All type pipe fittings, lamp cap, etc


Company Contact:


  • Phone: 17704032641

  • Address: Songgang, Baoan District, Shenzhen, China, shenzhen , guangdon , China

  • Email: Email


Published date: June 2, 2025

  • Business Description: We are a thread rolling machine manufacturer from China, thread rolling machine is our specialty product, we also deal in chamfering machines, tapping machines, vibrating bowl and automatic lathes and thread rolling wheel dies.
