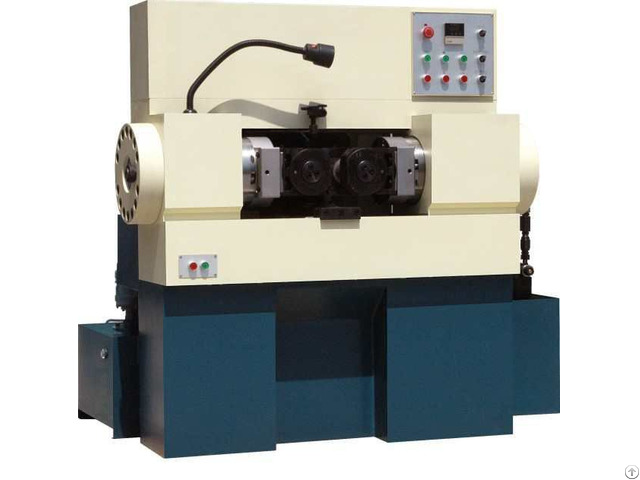

Feda Fd 25t Auto Feeding Bolt Thread Rolling Machine - China
price: 22950.00 Dollar US$
1 - Automatic feeding with adjustable brackets
2 - Speed is adjustable for different products
3 - 54mm hole diameter for SKD11/DC53 thread rolling dies 4 - Max.
Rolling pressure is about 250KN
5 - It is easy to operate and maintain the machine
6 - CE, ISO9001-2008
Specification
Working diameter 12-80mm
Thread pitch 1.0-8mm
Thread length In feed or Thru feed
Spindle speed 16/27/37/62rpm (variable speed)
Outside diameter of rolling die 170-220mm
Inside diameter of rolling die 75mm Thickness of rolling die 160mm
Feed stroke 0-12mm
Main motor 11KW
Hydraulic motor 3KW
Supply voltage 380V 3P 50Hz
Max rolling pressure 25T
Weight(reference) 3560(KG)
Dimension(L*W*H) 1580*1600*1650mm
Package Dimension(L*W*H) 1630*1650*1750mm
