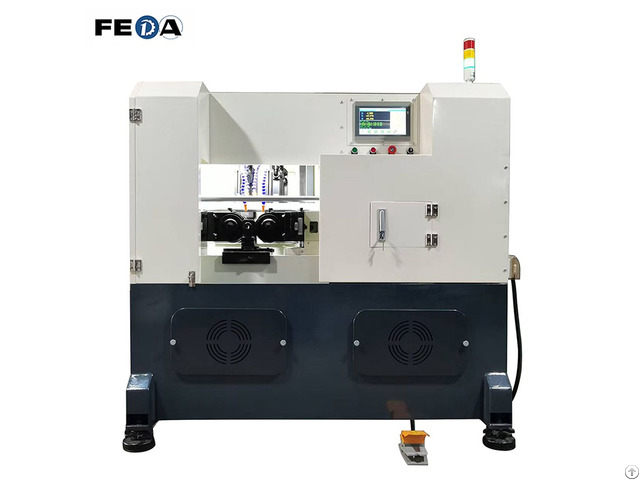

Fd Cnc15t High Precision Cnc Thread Rolling Machine - China
price: 25150.00 Dollar US$
Specification Working diameter In feed: 40mm Through feed: 25mm Thread pitch 0.4-3.0P Thread length In feed & Through feed Spindle speed 1-70rpm (Infinitely variable speed) Feeding speed of right roller Max.
1000mm/min Outside diameter of rolling die 140-175mm Inside diameter of rolling die(keyway) 54mm Thickness of rolling die 80mm Center distance between two spindles 140-220mm Height from reference surface to spindle center 125mm Spindle stroke 80mm Spindle rotation angle ±6° Ball screw lubrication Automatic mandatory lubrication Lubrication of guide rail surface Number of controlled axes 3 axes Min.
instruction unit Linear axis: 0.001mm Rotation axis: 0.01 ° Spindle drive motor Servo motor 3.1KW *2 Feeding motor Servo motor 3.1KW *1 Cooling oil pump motor 90W Max.
rolling pressure 15T Supply voltage 380V 3P 50Hz Weight(reference) 1550(KG) Package Dimension(L*W*H) 1750*1450*2080 mm Dimension(L*W*H) 1600*1300*1900 mm
Company Contact:
- Posted By: Feda Industry Co., Ltd
- Phone: 17704032641
- Address: Songgang, Baoan District, Shenzhen, China, shenzhen , guangdon , China
- Email:
- Website: https://www.szfeda.com/
Published date: June 2, 2025
- Business Description: We are a thread rolling machine manufacturer from China, thread rolling machine is our specialty product, we also deal in chamfering machines, tapping machines, vibrating bowl and automatic lathes and thread rolling wheel dies.
