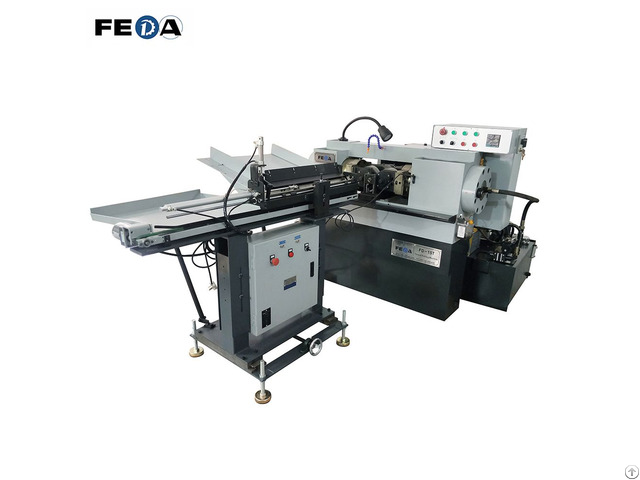

Fd 15t Rebar Thread Rolling Machine Construction Bar Screw Bolt - China
price: 10850.00 Dollar US$
1 - Automatic feeding with adjuatable brackets 2 - Speed is adjutable for different products 3 - 54mm hole diamter for SKD11/DC53 thread rolling dies 4 - Max.
Rolling pressure is about 150KN 5 - It is easy to operate and maintain the machine 6 - CE, ISO9001-2008 Specification Working diameter 4-60mm Thread pitch 0.8-5mm Thread length In feed or Thru feed Spindle speed 28/35/45/56rpm Outside diameter of rolling die 135-178mm Inside diameter of rolling die 54mm Thickness of rolling die 120mm Min.
center distance between die spindles 120mm Max.
center distance between die spindles 240mm Main motor 5.5KW Hydraulic motor 2.2KW Max.
Rolling pressure 15T Supply voltage 380V 3P 50Hz Weight(reference) 2500(KG) Dimension(L*W*H) 1560*1550*1260 mm Package Dimension(L*W*H) 1600*1540*1550 mm
Company Contact:
- Posted By: Feda Industry Co., Ltd
- Phone: 17704032641
- Address: Songgang, Baoan District, Shenzhen, China, shenzhen , guangdon , China
- Email:
- Website: https://www.szfeda.com/
Published date: June 2, 2025
- Business Description: We are a thread rolling machine manufacturer from China, thread rolling machine is our specialty product, we also deal in chamfering machines, tapping machines, vibrating bowl and automatic lathes and thread rolling wheel dies.
