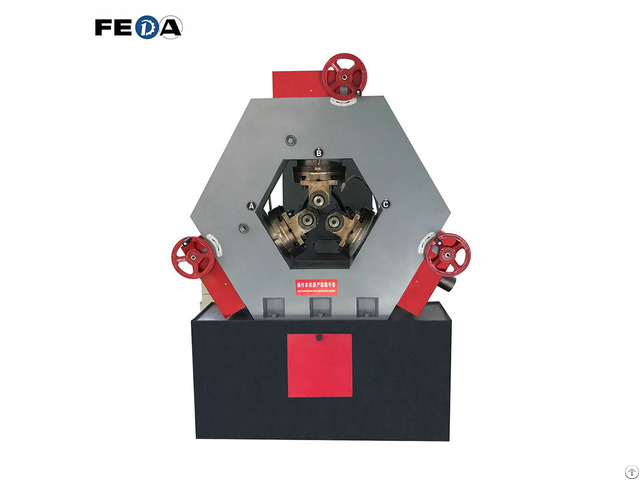

Fd 60f Rebar Thread Rolling Machine Metal Rod Hydraulic - China
price: 11950.00 Dollar US$
1 - Three rollers to keep inside diameter same as that before rolling 2 - Usually used for making thread, knurling on pipe, tube parts 3 - High precision, stability and high durability 4 - Automatic feeding device(Vibration bowl) can be designed 5 - CE, ISO9001-2008 Specification
Working diameter 20-60mm
Range of pitch 1.0-4.0P
Thread length In feed or Thru feed
Spindle speed 90/120rpm (variable speed)
Outside diameter of rolling die φ100mm- 150mm
Inside diameter of rolling die φ40mm Length of rolling dies 100mm
Max.
distance between the roller shafts 100mm
Output(pcs/min) 10-35(pcs/min)
Swiveling Angle(degree) ±3°
Main power motor 5.5 KW
Hydraulic motor 2.2 KW
Max rolling pressure 15T
Supply voltage 380V 3P 50Hz
Weight(reference) 2250KG
Dimension(L*W*H) 1650*1670*1850 mm
Package(L*W*H) 1600*1620*1800 mm
Company Contact:
- Posted By: Feda Industry Co., Ltd
- Phone: 17704032641
- Address: Songgang, Baoan District, Shenzhen, China, shenzhen , guangdon , China
- Email:
- Website: https://www.szfeda.com/
Published date: July 22, 2025
- Business Description: We are a thread rolling machine manufacturer from China, thread rolling machine is our specialty product, we also deal in chamfering machines, tapping machines, vibrating bowl and automatic lathes and thread rolling wheel dies.
