Fd 50t Heavy Duty Rolling Machine Hydraulic Two Roll Threadinground Dies - China

price: 34650.00 Dollar US$

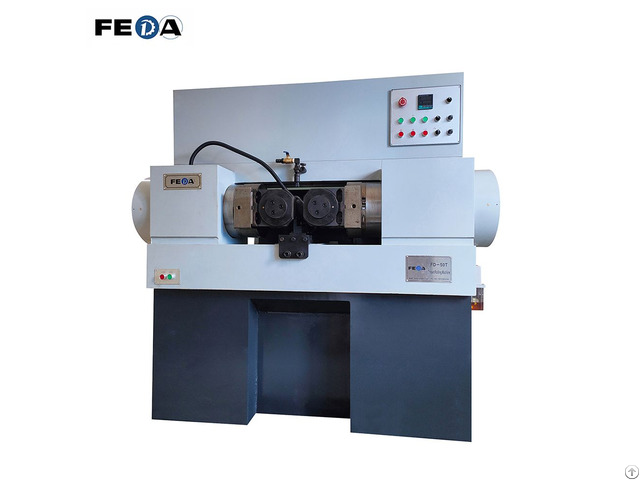

Fd 50t Heavy Duty Rolling Machine Hydraulic Two Roll Threadinground Dies

Products Photos Catalog 50t Heavy Duty Rolling Photos Catalog

1 - Automatic feeding with adjuatable brackets

2 - Speed is adjutable for different products

3 - 85mm hole diamter for SKD11/DC53 thread rolling dies

4 - Max.

Rolling pressure is about 500KN

5 - It is easy to operate and maintain the machine

6 - CE, ISO9001-2008 Specification

Working diameter 12-110mm

Thread pitch 1.0-10mm

Thread length In feed or Thru feed

Spindle speed 16/21/27/37/46/62rpm (variable speed)

Outside diameter of rolling die 170-240mm

Inside diameter of rolling die 85mm

Thickness of rolling die 200mm

Feed stroke 0-16mm

Total machine power 18.2KW

Max rolling pressure 50T

Supply voltage 380V 3P 50Hz

Weight(reference) 5100(KG)

Package Dimension(L*W*H) 2350*2100*1950mm

Dimension(L*W*H) 1650*1720*1700mm


Company Contact:


  • Phone: 17704032641

  • Address: Songgang, Baoan District, Shenzhen, China, shenzhen , guangdon , China

  • Email: Email


Published date: July 20, 2025

  • Business Description: We are a thread rolling machine manufacturer from China, thread rolling machine is our specialty product, we also deal in chamfering machines, tapping machines, vibrating bowl and automatic lathes and thread rolling wheel dies.
