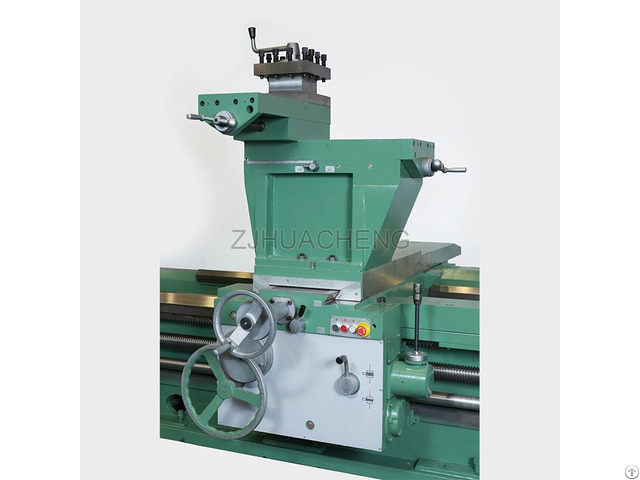

High Speed Steel Huasheng Unniversal Heavy Duty Lathe - China

This machine is a universal lathe, suitable for high speed steel and hard alloy cutter to process axial parts, cylinder type and disk parts of different materials, turning excircle, section, slot, boring holes and inner cone.

Heavy duty lathe machine also turning various threads.

Spindle adopts three supporting structure, the whole lathe bed form the box body, it make the bed has high rigidity.

Lathe is equipped with a separate pump, forced lubrication, carrige box, the tool post, saddle, tailstock can fast moving.

Huasheng-heavy duty lathe has high rigidity, high efficiency, safe and reliable, convenient operation and attractive appearance etc.

heavy duty lathe manufacturers: Zhenjiang Huasheng Intelligent Technology Co., Ltd

MODEL CW61128 CW61148 CW61168 CW61198 CW61208 CW62128 CW62148 CW62168 CW62198 CW62208

Max workpiece weight 10T

Max swing over bed 1280mm 1480mm 1680mm 1980mm 2080mm

Max swing over cross slide 840mm 1040mm 1240mm 1500mm 1600mm

Center distance 2m 3m 4m 5m 6m 8m 10m 12m

Max swing over gap 1580mm 1780mm 1980mm 2280mm 2380mm

Valid length of gap 400mm

Bed width 1100mm

Headstock

Spindle bore Φ130mm

Spindle taper Metric 140#

Spindle speeds 3.15-315r/min or 2-200r/mm or 2.5-250r/mm.

Forward 21kinds, Reversal 12kinds

GEAR BOX-THREADS & FEEDS

Metric threads range 44 1-120mm

Inch threads range 31 1/4-24 T/I

Moudle threads range 45 0.5-60mm

Diametral threads range 38 1/2-56DP

Longitudinal feeds range 56 0.1-12mm

Cross feed range 56 0.05-6mm

Rapid feed: long/cross 3400mm/min, 1700mm/min

TOOL POST

Distance between Center&Tool 48mm

Tool section 45*45mm

CARRIAGE Cross slide travel 780mm

Compound rest travel 280mm

TAILSTOCK

Sleeve diameter Φ260mm (With built-in small spindle)

Sleeve taper Metric 80#

Sleeve travel 300mm

MOTOR Main drive motor 30kw

Coolant pump motor 0.15kw

Rapid feed motor 1.5kw

Tailstock motor 1.5kw

Company Contact:

• Posted By: Zhenjiang Huasheng Intelligent Technology Co., Ltd

• Phone: 15862992365

• Address: NO.9 Jingsi Rd ,High technology industrial zone,Zhenjiang, Zhenjiang , JIangsu , China

• Email:

• Business Description: The predecessor of Zhenjiang Huasheng Intelligent Technology Co., Ltd. is Zhenjiang Machine Tool Factory which was established in the 1960s of last century; it has a history of more than 60 years; in recent years, the economic strength of the company has been increasing, and its comprehensive strength has been improving in the national machine tool industry, and it is in the leading position in the similar product machine tool industry in the province.

  The company has technical development department, manufacturing department, market development department, and other institutions, set up ten production workshops, forming a complete Organizational structure of development, manufacturing, marketing and control.

  The company is strategically located and easily accessible.

  The company's main products include ordinary lathes, CNC lathes, shaped screw CNC milling machine, CNC special machine tools, such as 8 series, 30 varieties, more than 300 specifications of the machine; the production of the machine has a high precision and good use; applicable to various industries of turning parts.

  Machine tools are the machine tools of the assembly industry, and good quality is the pursuit of customers and the strongest support for the company to take off.
