Rf Power High Frequency Resistors - Chinaprice: 1.00 Dollar US$

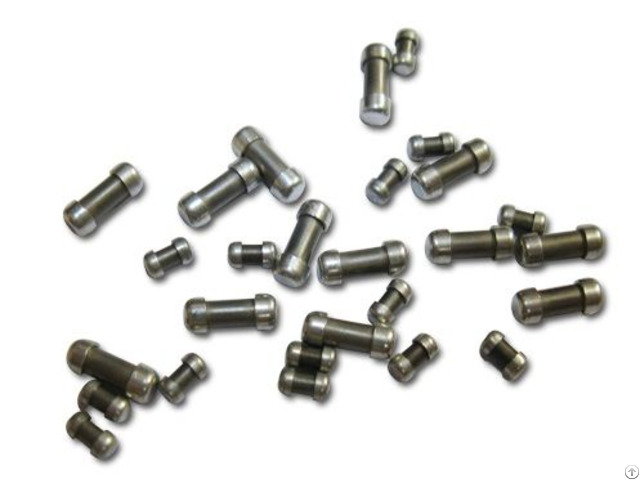

Cylindrical Load High Frequency Resistor/Microwave Load/Rod Terminations/High Power RF Resistor
Power: 0.25W-25W Frequency: DC-18 GHz
Resistance Tolerance: 1%, 2% Resistor Value: 50Ohm
SWR: 1.15: 1 Operating Temperature: -55°C To +125°C With 25°C As Reference
Package Type: Surface Mount Condition: Original & New
Lead Free Status: RoHS Compliant Product Description
These high-power devices are designed to dissipate power in R.f.Circuits when mounted to an appropriate heat sink.
The terminations provide a low VSWR under maximum power conditions.
Substrate: Berylium Oxide ceramic
Cover: Alumina ceramic
Resistive element: Thick film
Terminal tensile: Copper Sn (Ag Au)
Mounting flange: Copper of planting nickel TECHNICAL SPECIFICATIONS
resistor value: 50Ω
SWR: 1.15: 1
Work temperature: 55~125ºC Model Size Φ L l
MWR13C ø 1.65*3.0 1.65+0.030 3.0±0.1 0.7±0.10
MWR17C ø 2.10*5.6 2.10+0.030 5.6±0.2 1.25±0.10
MWR25C ø 3.0*8.5 3.0+0.050 8.5±0.25 1.65±0.10
MWR45C ø 5.18*14.6 5.18+0.050 14.6±0.25 2.5±0.10
MWR70C ø 7.68*23.8 7.68+0.050 23.8±0.3 3.2±0.10 Parameter
Models Resistor value(Ω) Tolerance(%) Power(W) Frequency (MH) SWR
MWR13C 50 ±2 0.5 0-3000 1.2: 1
MWR17C 50 ±2 1/4 0-3000 1.2: 1
MWR25C 50 ±2 3 0-3000 1.2: 1
NWR45C 50 ±2 10 0-3000 1.2: 1
NWR70C 50 ±2 10 0-3000 1.2: 1 50 Ohm Rod Resistors | Products & Suppliers/10 Ohms High Frequency/RF Resistors High Frequency/RF Resistors, 50 Ohms 2 % High Frequency/RFResistors, 200 W 50 Ohms High Frequency/RF Resistors, 20 GHz 50 Ohms High Frequency/RF Resistors, 40 GHz 50 Ohms High Frequency/RF Resistors, 250 Ohms High Frequency/RF Resistors
Send us your inquiry with details of requirements, we will provide professional RF solutions, RF resistor experts.
We are dedicated to the development and production of RF resistors.
This product is widely used in couplers, attenuators, microwave loads, isolators, and power dividers.
