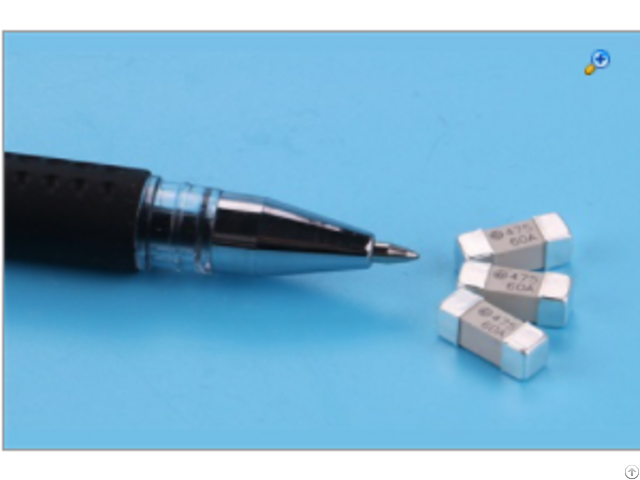

Smd1140 Fuse - China

price: 0.15 Dollar US$

Time - current features：Fast-Acting(F)

Breaking Capacity: 50A@400VDC, 100A@350VDC, 150A@125/250VAC/DC, 500A@72VDC, 1000A@32VDC

Standard：UL-248-14

Materials：Body: Ceram ic, End Caps: Copper plated with sliver

Operating Temperature：-55℃ to +125℃

Stock Temperature：+10℃ to +60℃

Relative humidity: ≤75% yearly average Without dew, maximum 30 days at 95%

Soldering Parameters：260℃.

≤10 sec (Wave Soldering), 350℃.

≤3 sec (Hand Soldering)

Soldering Peak: 260℃.

10 sec.

280℃.

5 sec.

Company Contact:

Posted By: Dongguan Better Electronics Technology Co.,Ltd

Phone: 076923078202

Address: Room 601 of 16Block, No.1 Headquarters Velley, Hsinchu Road, Songshan Lake, Dongguan , Guangdong , China

Email:

Website: http://www.betterfuse.com

Published date: September 29, 2021

Business Description: Incorporated in 2003 on the foundations of the German WICKMANN factory in Dongguan, Better Group established and secured its top 3 position as a manufacturer for total circuit protection components and brand operator in China.

Our product portfolio consists of fuses and components for over-current, over-voltage and over-temperature protection and related accessories, which are approved and certified through major international testing laboratories, such as UL, VDE, TUV, CCC, CQC, KC, PSE and ASTA.

The product portfolios of BETTERFUSE enable to satisfy safety technology requirements in a variety of industrial sectors and areas application.

Be it miniature fuses for mobile phones or DVD players,fuses for cars and battery-driven vehicles or innovative High-voltage fuses for Microwave cookers.

We are competent and reliable partners.

We utilize the international synergetic effects generated by research & development, marketing and service activities, because our company not only operates in China but also have intensive and comprehensive marketing activities throughout the Far East.
