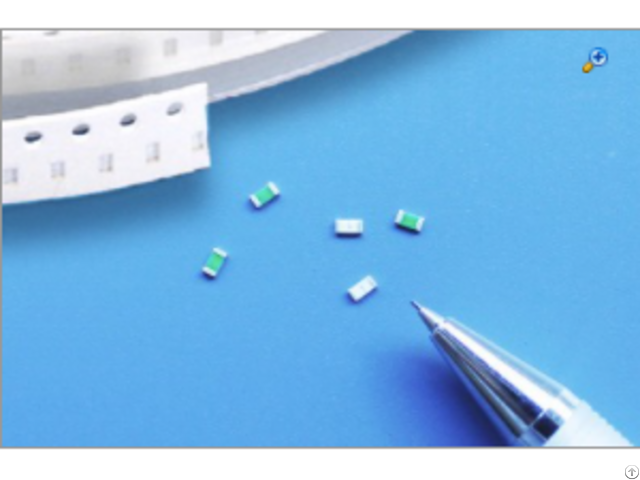

Smd1206 Fuse - China

price: 0.15 Dollar US$

Main Characteristics: Fast-Acting(F) Standard:UL248-14 Materials:Substrate: Ceramic, Termination: Silver over-plated with nickel and Tin Operating Temperature:-55℃ to +150℃ Storage Conditions:+10℃ to +60℃ Relative humidity: ≤75% yearly average, Without dew, maximum 30 days at 95% Soldering Parameters:260℃.

≤10 sec (Wave Soldering), 300℃.

≤2 sec (Hand Soldering) Soldering Peak: 260℃.

10 sec., 280℃.

5 sec.

(IEC 60068-20) Breaking Capacity:50A@125V AC, 50A@125V DC, 50A@72V DC, 50A@63V DC, 150A @ 48V DC, 150A @ 32V DC

Company Contact:

  • Phone: 076923078202

  • Address: Room 601 of 16Block, No.1 Headquarters Velley, Hsinchu Road, Songshan Lake, Dongguan , Guangdong , China

  • Email: Email

Published date: September 29, 2021

  • Business Description: Incorporated in 2003 on the foundations of the German WICKMANN factory in Dongguan, Better Group established and secured its top 3 position as a manufacturer for total circuit protection components and brand operator in China.

    Our product portfolio consists of fuses and components for over-current, over-voltage and over-temperature protection and related accessories, which are approved and certified through major international testing laboratories, such as UL, VDE, TUV, CCC, CQC, KC, PSE and ASTA.

    The product portfolios of BETTERFUSE enable to satisfy safety technology requirements in a variety of industrial sectors and areas application.

    Be it miniature fuses for mobile phones or DVD players,fuses for cars and battery-driven vehicles or innovative High-voltage fuses for Microwave cookers.

    We are competent and reliable partners.

    We utilize the international synergetic effects generated by research & development, marketing and service activities, because our company not only operates in China but also have intensive and comprehensive marketing activities throughout the Far East.
