    • Ac Dc 200a 1mv 10mv A Clamp On Current Probe D20 Gfuve Linearity 0 1% - China

    price: 300.00 Dollar US$

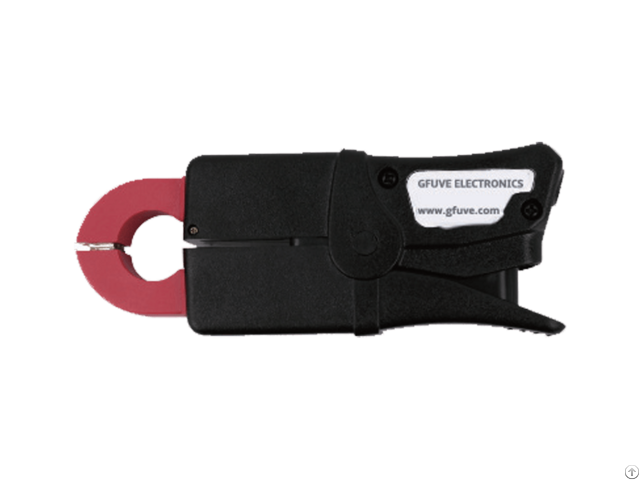

    Ac Dc 200a 1mv 10mv A Clamp On Current Probe D20 Gfuve Linearity 0 1%

    Products Photos Catalog 200a 1mv 10mv Clamp Photos Catalog

    The Model D20 AC/DC current clamp is a portable 100A/200Arms current probe with insulated BNC output cable that can accurately measure AC or DC current waveforms.

    The unit has proportional mV output for direct readings on oscilloscopes from DC to 1MHz at -3dB.

    The D20 is power by a rechargeable multimeter battery or from a 9 V power signal cable.

    It is the perfect tool for most of the oscilloscopes.

    The D20 current clamp is a general purpose 200A AC/DC current probe designed for use with DMMs, oscilloscopes, power loggers and energy meter calibration instruments that have a current input.

    It has a 1000: 1 ratio and output of 10mV per amp measured in the jaw.

    The D20 current probe has an integral 2.5m lead terminated.

    The rounded jaw design on this current clamp makes it well-suited for power applications where high linearity 0.1% and low phase shift and wide frequency response up to 200kHz are important.

    Electrical parameters

    Ratio: 1000: 1 or 2000: 1 (customized)

    Accuracy class: 0.2%, 0.5%, 1%, 2%

    Primary current: 0 - 100A or 0-200A AC/DC

    Signal output: 10mV/A or 1mV/A

    Secondary voltage: 0 - 1V or 0 - 2V AC/DC

    Max.

    Cont.

    Input current: 200A AC/DC

    Load capacity: ≤20Ω, Standard 4Ω

    Over voltage category: CAT III 600V

    Linearity: 0.1%

    Frequency range: 10Hz-1MHz

    Frequency response time: ≤10us

    Phase Shift at 50/60Hz: ±1°

    Dielectric strength: 3KV 50Hz/60Hz at 1minute

    Temperature range: -40°C to +55°C

    Output: 2.5 meter cable with D01 or BNC connector, 4mm banana

    Max.

    voltage not insulated conductors: 720 V

    Power supply: 5V or 9V DC

    Standard: EN 61010-1, EN 61010-2-032, EN 61010-2-031

    IEC60044-1, & IEC61869-2, 600V CAT III

    Installation: clamp type

    Output mode: lead output(2.5m)

    Pollution Degree: 2

    Protection: IP40

    Connector: BNC, 4mm banana, signal cable(4 cores), customized Mechanical parameters

    Dimensions (L x W x H)(mm): 53 x 138 x 28

    Weight (g): 420

    Holding wire diameter(mm): φ20

    Max.

    jaw opening (mm): 20

    Jaw color: Red, black

    Material: PC+ABS, UL94 V0


    Company Contact:


    • Phone: 18901232181

    • Address: Oriental HuaRui A No. 150 Guanzhuang Road Chaoyang District Beijing, 100024, China, BEIJING , China

    • Email: Email


    Published date: February 1, 2024

    • Business Description: Beijing GFUVE Electronics Co., Ltd. was established in 2005 - It combined science, industry and trade together as one high-tech enterprise.
