    • Ac Dc 1000a 1mv A Clamp On Current Probe D50 Gfuve Hall Effect High Linearity 0 1% - China

    price: 300.00 Dollar US$

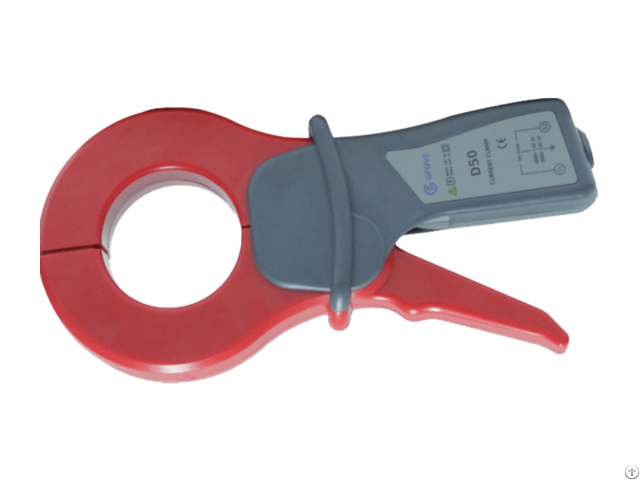

    Ac Dc 1000a 1mv A Clamp On Current Probe D50 Gfuve Hall Effect High Linearity 0 1%

    Products Photos Catalog 1000a 1mv Clamp Photos Catalog

    The round jaw design on the D50 series hall effect current clamp along with the high content permalloy core makes them well suited for power quality applications where high linearity and low phase shift along with wide frequency are important from 10Hz to 200kHz.

    Measurement range is 0 to 500A or 0 to 1000A AC/DC.

    It designed for oscilloscopes, power quality analyzer, waveform displaying instruments, and other frequency sensitive displaying instruments with BNC inputs.

    The Model D50 AC/DC hall effect current clamp is a portable 500A/1000Arms current probe with insulated BNC output cable that can accurately measure AC or DC current waveforms.

    The unit has proportional 1V or 2V output for direct readings on oscilloscopes from DC to 1MHz at -3dB.

    The D50 is power by a rechargeable multimeter battery or from a 5V or 9 V DC power signal cable.

    It is the perfect tool for most of the waveform displaying instruments.

    Electrical parameters

    Ratio: 1000: 1, 2000: 1 (customized)

    Accuracy class: 0.2%, 0.5%, 1%, 2%

    Primary current: 0 - 500A or 0-1000A AC/DC

    Signal output: 1mV/A, 10mV/A

    Secondary voltage: 0 - 1V or 0 - 2V AC/DC

    Max.

    Cont.

    Input current: 1200A AC/DC

    Load capacity: ≤20Ω, standard 4Ω

    Over voltage category: CAT III 600V

    Linearity: 0.1%

    Frequency range: 10Hz-1MHz

    Frequency response time: ≤10us

    Phase Shift at 50/60Hz: ±1°

    Dielectric strength: 3KV 50Hz/60Hz at 1minute

    Temperature range: -40°C to +55°C

    Output: 2.5 meter cable with D01 or BNC connector

    Max.

    voltage not insulated conductors: 720 V

    Power supply: 5V or 9V DC

    Standard: EN 61010-1, EN 61010-2-032, EN 61010-2-031

    IEC60044-1, & IEC61869-2, 600V CAT III

    Installation: clamp type

    Range: 10A, 100A, 1000A optional

    Output mode: lead output(2.5m)

    Pollution Degree: 2

    Protection: IP40

    Connector: BNC, 4mm banana, signal cable(4 cores), customized Mechanical parameters

    Dimensions (L x W x H) (mm): 105 x 218 x 30

    Weight (g): 650

    Holding wire diameter (mm): φ52

    Max.

    jaw opening (mm): 52

    Jaw color: Red & Grey

    Material: PC+ABS, UL94 V0
