    • 120a Ac Current Clamp Gfuve Xq13 13mm Hole 200khz Handheld Split Core Ct Transformer Probe Sensor - China

    price: 168.00 Dollar US$

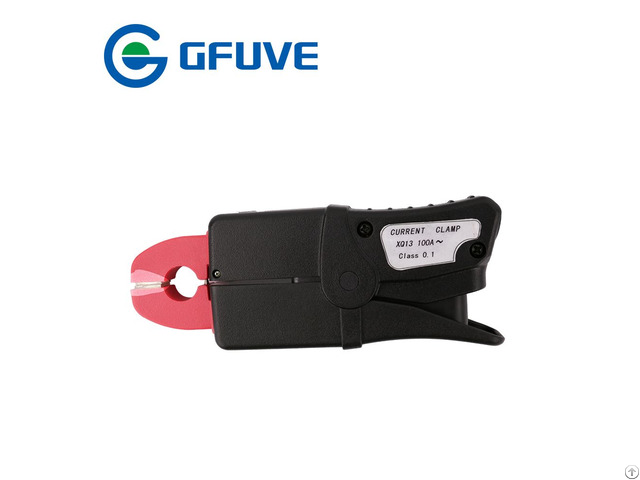

    120a Ac Current Clamp Gfuve Xq13 13mm Hole 200khz Handheld Split Core Ct Transformer Probe Sensor

    Products Photos Catalog 120a Current Clamp Photos Catalog

    The model XQ13 100A current probe clamp is suitable for 0A-100A cable online measurement, it belongs to high performance transducer field.

    Up to 0.1% accuracy class, this current probe clamp is suitable for most oscilloscopes.

    Current signal can be measured directly.

    Suitable for accurate measurement of AC current using the permalloy core material.

    Frequency range 40Hz-200KHz, with standard 2.5 meter cable with D01 connector.

    EN 61010-1, EN 61010-2-032, IEC60044-1 Standard.

    Electrical parameters

    Ratio: 1000: 1, 2000: 1 or 2500: 1 (customized)

    Accuracy class: 0.1%, 0.2%

    Primary current: 0 - 100A AC

    Secondary current: 0 - 100mA AC (customized)

    Max.

    Cont.

    Input current: 120A

    Load capacity: ≤20Ω, Standard 4Ω

    Over voltage category: CAT III 600V

    Output signal (AC current): From 0 to 100mA AC at nominal input current

    Output signal (AC voltage): From 0 to 5V AC at nominal input current

    Signal ratio: 1mA/A, 1mV/A, 10mV/A, 100mV/A

    Frequency range: 40Hz-200KHz

    Dielectric strength: 3KV 50Hz/60Hz at 1 minute

    Temperature range: -20°C to +55°C

    Output: 2.5 meter cable with D01 connector

    Max.

    voltage not insulated conductors: 720 V

    Standard: EN 61010-1, EN 61010-2-032, EN 61010-2-031

    IEC60044-1, & IEC61869-2, 600V CAT III

    Installation: Clamp type

    Output mode: Lead output (2.5m)

    Connector: BNC, 4mm banana, Audio plug, customized Mechanical parameters

    Dimensions (L x W x H) (mm): 48 x 179 x 27

    Weight (g): 325

    Holding wire diameter (mm): φ13

    Max.

    jaw opening (mm): 13

    Jaw color: Red, yellow, blue, green, black

    Material: PC+ABS+Polycarbonate, UL94 V0


    Company Contact:


    • Phone: 18901232181

    • Address: Oriental HuaRui A No. 150 Guanzhuang Road Chaoyang District Beijing, 100024, China, BEIJING , China

    • Email: Email


    Published date: February 2, 2024

    • Business Description: Beijing GFUVE Electronics Co., Ltd. was established in 2005 - It combined science, industry and trade together as one high-tech enterprise.
