1200a Ac 2mhz Handheld Current Clamp Gfuve P50 50mm Hole Split Core Ct Transformer Probe Sensor - China

price: 195.00 Dollar US$

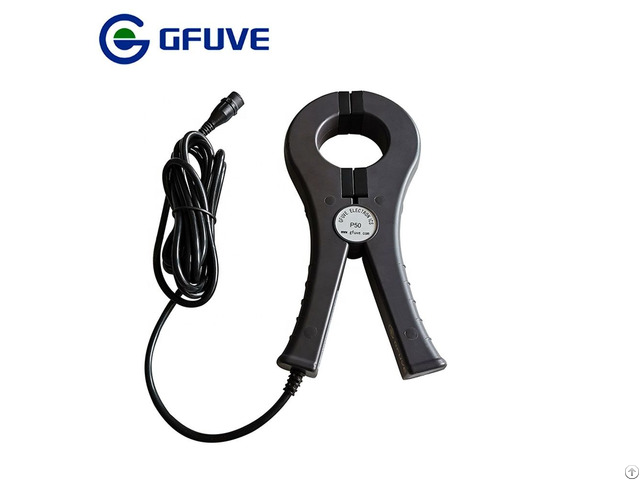

1200a Ac 2mhz Handheld Current Clamp Gfuve P50 50mm Hole Split Core Ct Transformer Probe Sensor

Products Photos Catalog 1200a 2mhz Handheld Photos Catalog

The round jaw design on the P50 Series clamp on current probes along with the high content nickel metal core makes them well suited for power quality applications where high accuracy and low phase shift along with wide frequency are important.

Measurement range is 1mA to 1200A.

The P50 clamp current transformer is a general purpose 1000A AC current probe designed for use with DMMs, loggers and other instruments that have a current input.

It has a 1000: 1 ratio and output of 1mA per amp or 1mV per amp measured in the jaw.

The P50 clamp current probe has an integral 2.5m lead terminated.

The rounded jaw design on this probe makes it well-suited for power applications where high accuracy 0.1% and low phase shift and wide frequency response are important.

Electrical parameters

Ratio: 1000: 1 or 2000: 1 (customized)

Accuracy class: 0.1%, 0.2%, 0.5%

Primary current: 0 - 1000A AC

Secondary output: 1mV/A AC, 5mV/A or (customized)

Secondary current: 0 - 1000mA AC and 0 - 5A AC

Max.

Cont.

Input current: 1200A

Load capacity: ≤20Ω, Standard 4Ω

Over voltage category: CAT III 600V

Output signal: 333mV, 500mV, 1V, 2V, 5V AC at nominal input current

Accuracy (1000A Range)

0-10A: ≤0.5%

10-100: ≤0.2%

10-1200A: ≤0.1%

Phase Shift(1000A Range)

0-10A: ≤0.5°

10-100: ≤0.2°

100-1200A: ≤0.1°

Frequency range: 40Hz-2000Hz or 10-2MHz

Dielectric strength: 3KV 50Hz/60Hz at 1 minute

Temperature range: -20°C to +55°C

Output: 2.5 meter cable with D01 connector

Max.

voltage not insulated conductors: 600 V

Standard: EN 61010-1, EN 61010-2-032, EN 61010-2-031

IEC60044-1, & IEC61869-2, 600V CAT III

Installation: Clamp type

Output mode: Lead output (2.5m)

Connector: BNC, 4mm banana, signal cable(2 cores), customized Mechanical parameters

Dimensions (L x W x H) (mm): 102.9 x 219.6 x 28

Weight (g): 550

Holding wire diameter (mm): φ50

Max.

jaw opening (mm): 50

Jaw color: Gray or blue

Material: PC+ABS+Polycarbonate, UL94 V0


Company Contact:


  • Phone: 18901232181

  • Address: Oriental HuaRui A No. 150 Guanzhuang Road Chaoyang District Beijing, 100024, China, BEIJING , China

  • Email: Email


Published date: February 1, 2024 - Modified date: February 1, 2024

  • Business Description: Beijing GFUVE Electronics Co., Ltd. was established in 2005 - It combined science, industry and trade together as one high-tech enterprise.
