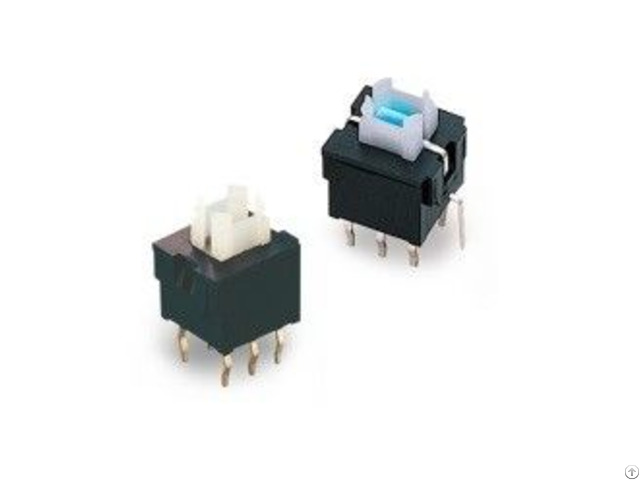

Illuminated Push Button Switches Tp613 Series - Taiwan

Feature: 1 - Precise design terminal type adequate for DIP IC pitch size (multiple of 2.54mm).

2 - Epoxy sealing treatment, free of flux entry.

3 - Several LED colors options.

4 - Side-actuated with right angle terminal.

Applications : Operating switches in all types of electronic equipment such as audio apparatus, office equipment, communications apparatus, TV sets, VCRs, etc.

Specifications:

1 - Item : Standard

2 - Rating: 0.1A 30VDC

3 - Insulation Resistance: 100MΩ Min (at 500 VDC)

4 - Dielectric Strength: AC 500V (50/60 Hz for 1 minute)

5 - Contact Resistance: 50mΩ Max.

(Initial)

6 - Electrically Life: 10, 000 Cycles Min

7 - Ambient Temperature: -10°C~ +80°C

8 - Operating Force: 150 ± 100gf (Momentary)

9 - Operating Force: 250 ± 100gf (Alternate)

10 - Operating Force: 200 ± 100gf (Momentary With Click)
