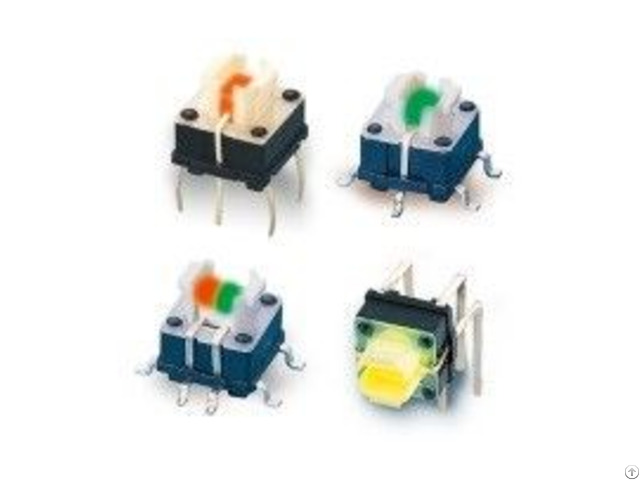

Illuminated Tact Switches Tp615 Series - Taiwan
price: contact company for price
Feature: 1 - Snap-in type, can be mounted directly on P.C.B board.
2 - Several LED colors options.
3 - Adequate for DIP & SMT.
4 - Several LED colors or bi-color or RGB color options.
Applications: Operating switches in all types of electronic equipment such as audio apparatus, office equipment, communications apparatus, TV sets, VCRs, etc.
Specifications:
1 - Item: Standard
2 - Rating: 50mA 12VDC
3 - Insulation Resistance: 100MΩ Min (at 500 VDC)
4 - Dielectric Strength: AC 250V (50/60 Hz for 1 minute)
5 - Contact Resistance: 100mΩ Max.
(Initial)
6 - Electrically Life: 300, 000 Cycles Min
7 - Ambient Temperature: -25°C~ +70°C
8 - Operating Force: 160 ± 50gf
Company Contact:
- Posted By: Highly Electric Co., Ltd.
- Phone: 886-2-82261490
- Address: Fl. 10-3, No.738, Chung-Cheng Road, Zhonghe District,, New Taipei City, Taiwan , Taiwan
- Email:
- Website: https://www.highly-elec.com
Published date: August 1, 2022
- Business Description: HIGHLY ELECTRIC CO.
was established in the year of 1974, building up the industrial switches manufacturer foundation from water tank pressure switch manufacturing.
In the beginning, Highly Switches was dedicated to develop switches such as door limit switch for the industrial field, then became a professional industrial switches manufacturer.
In 1994, Highly set up a team to develop an electronic LED switch for the foreseeable market demand.
As a leader of industrial switch manufacturers, Highly's creative idea not only awaken market demand but also stimulate crowded concentration in this field.
Business scope covering electronic equipment, computer peripheral, tele-communication, home appliance, medical equipment, industrial equipment, auto parts, and so on, Highly is fully involved and complied with high-quality policy with certified ISO9001 & ISO14001.
